 King Quest Kodiak  (20cc size EP/GP)

The Quest Kodiak (now Daher Kodiak) is an American utility aircraft designed and built by Quest Aircraft. The high-wing, unpressurized, single- engined turboprop has a fixed tricycle landing gear and is suitable for STOL operations from unimproved airfields.

Design began in 1999, it made its maiden flight on October 16, 2004, and was certified on 31 May 2007 before first delivery in January 2008. Quest Aircraft was purchased by Daher in 2019. By 2021, 300 were delivered.

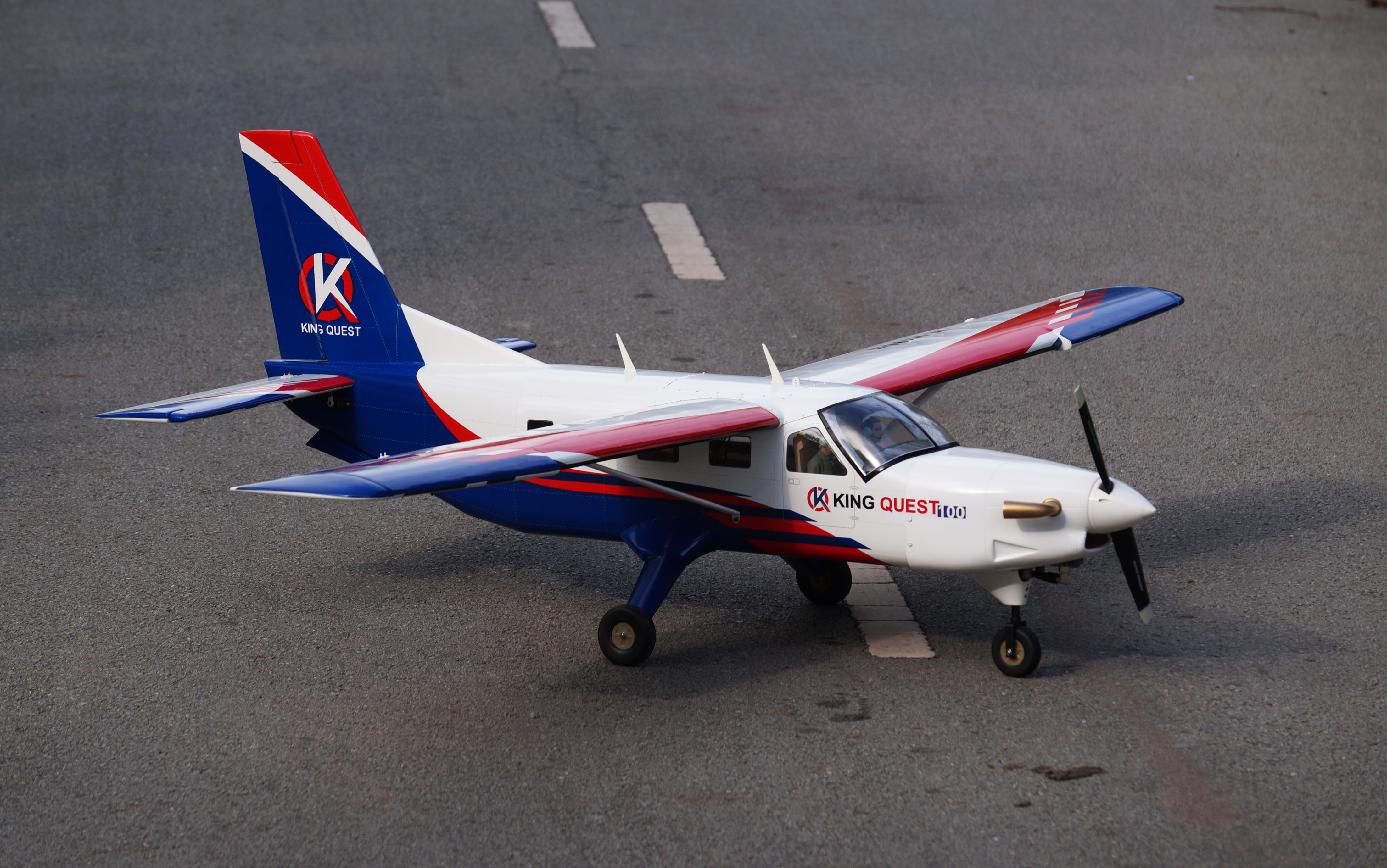

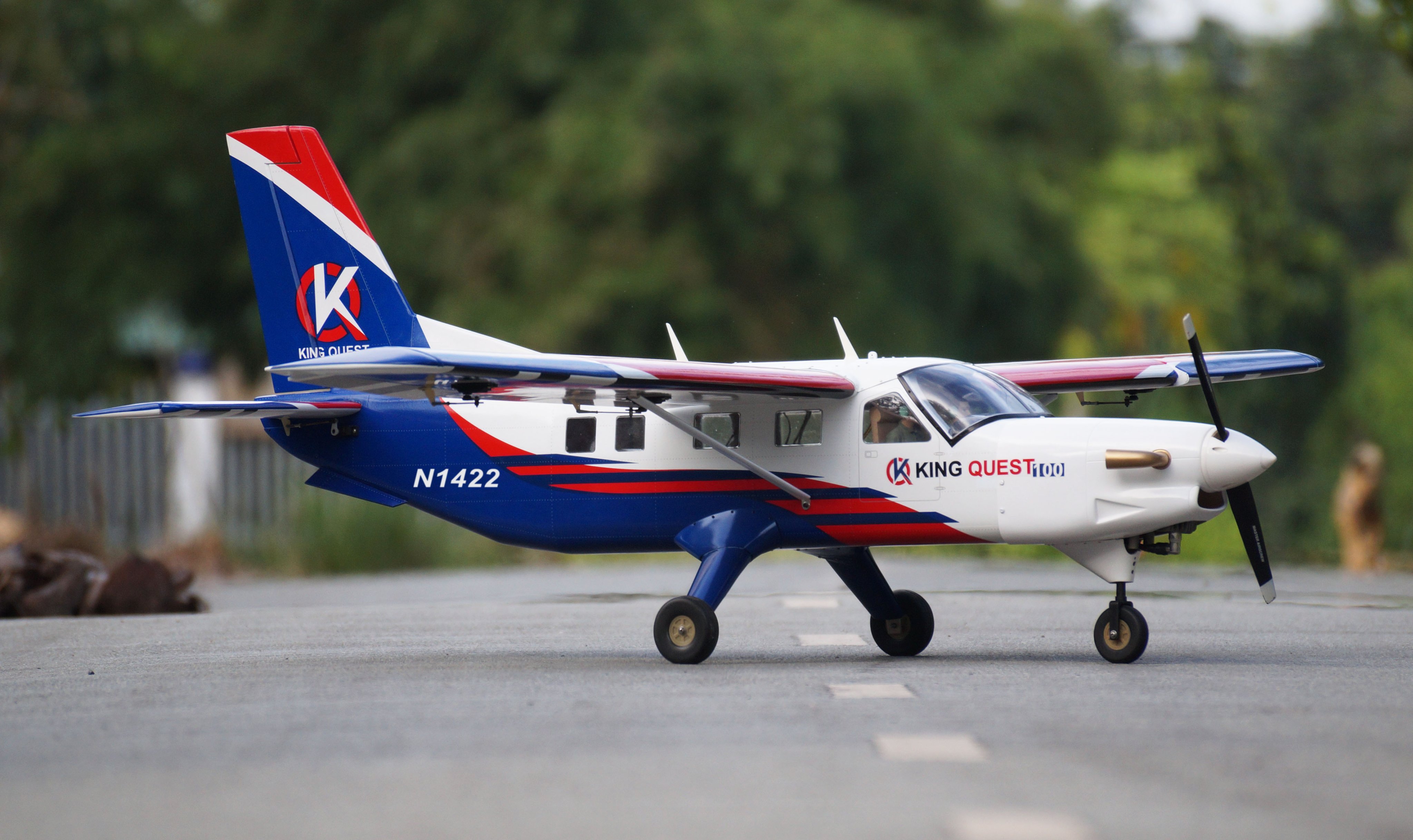

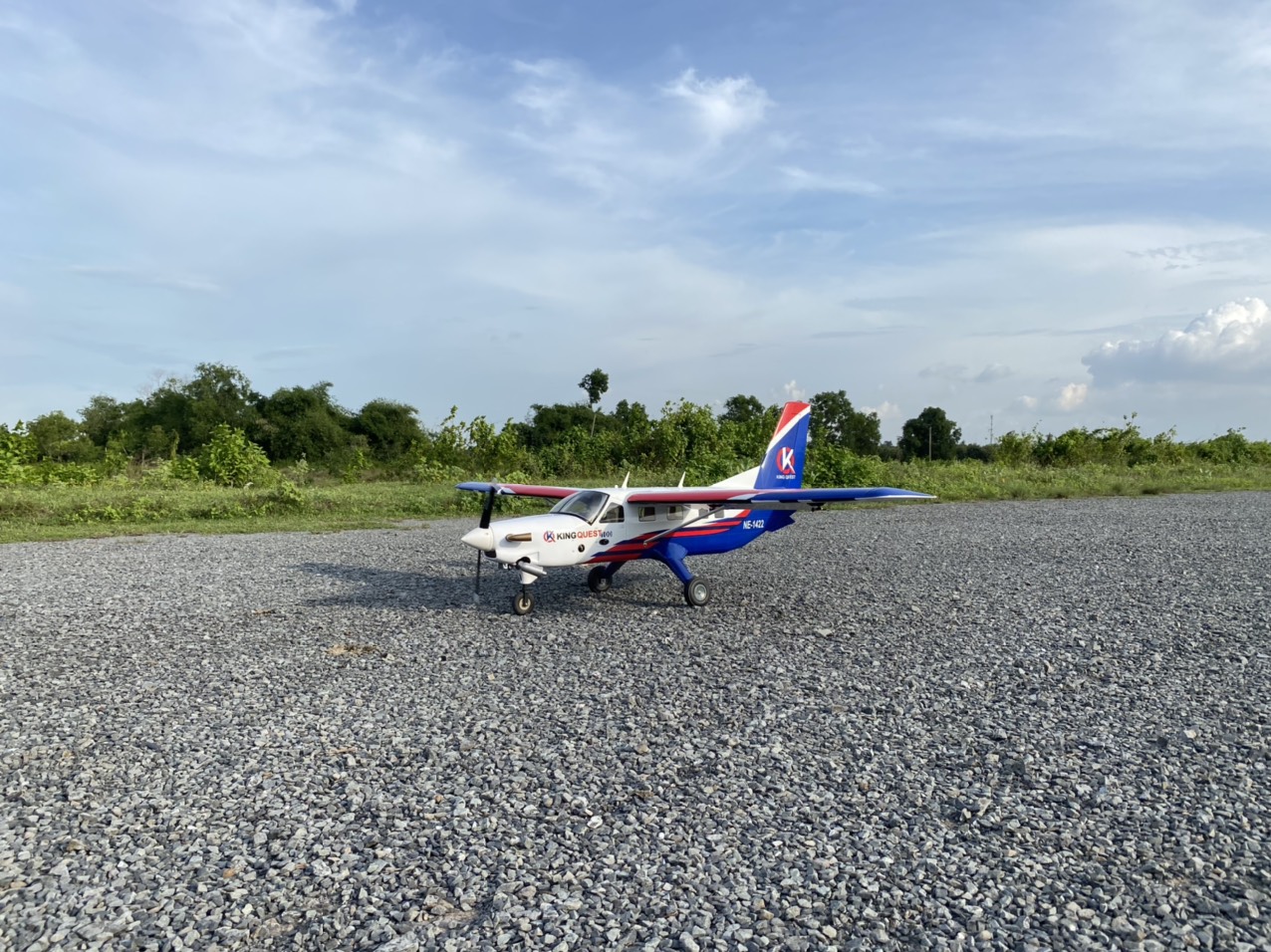

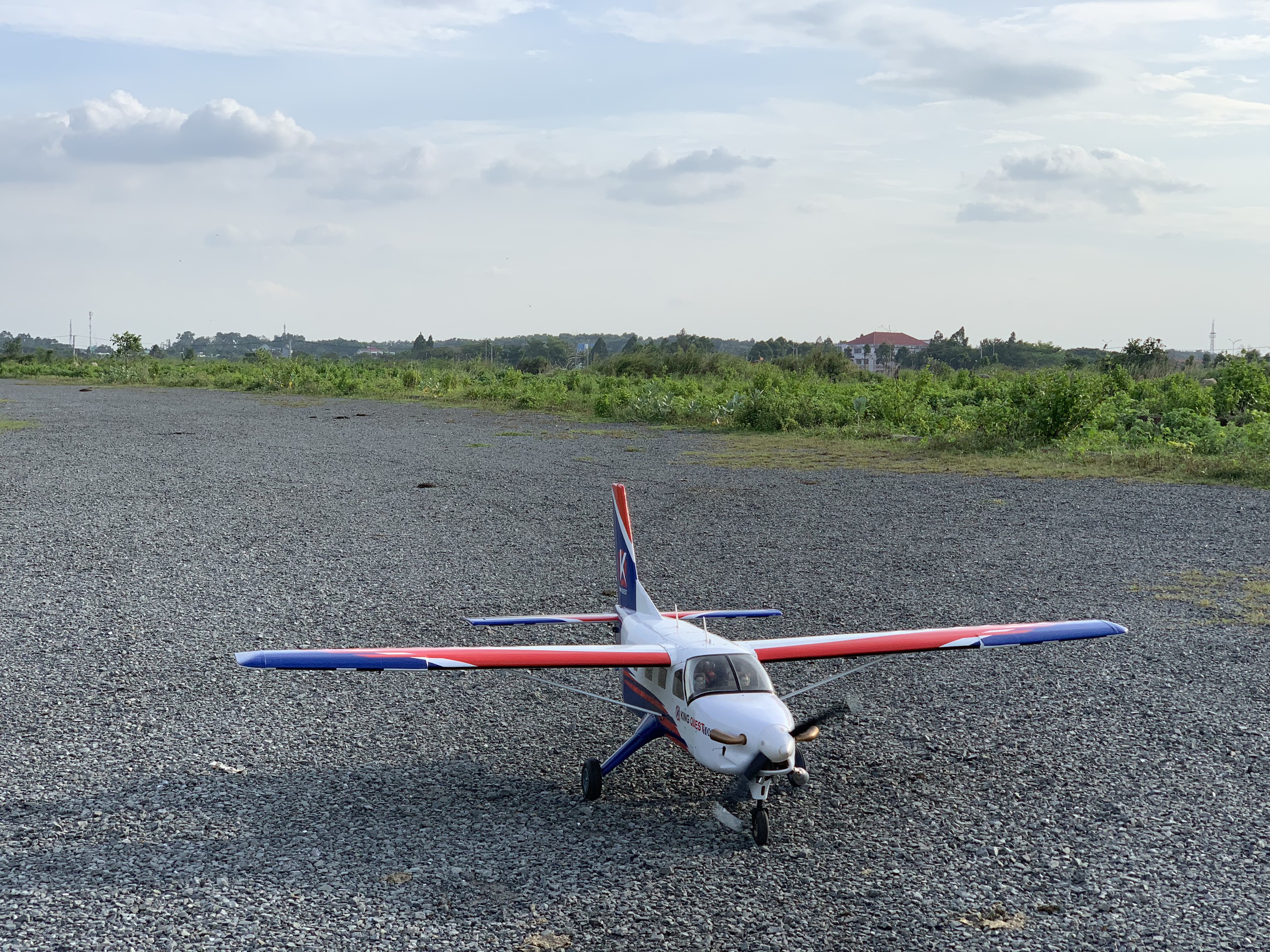

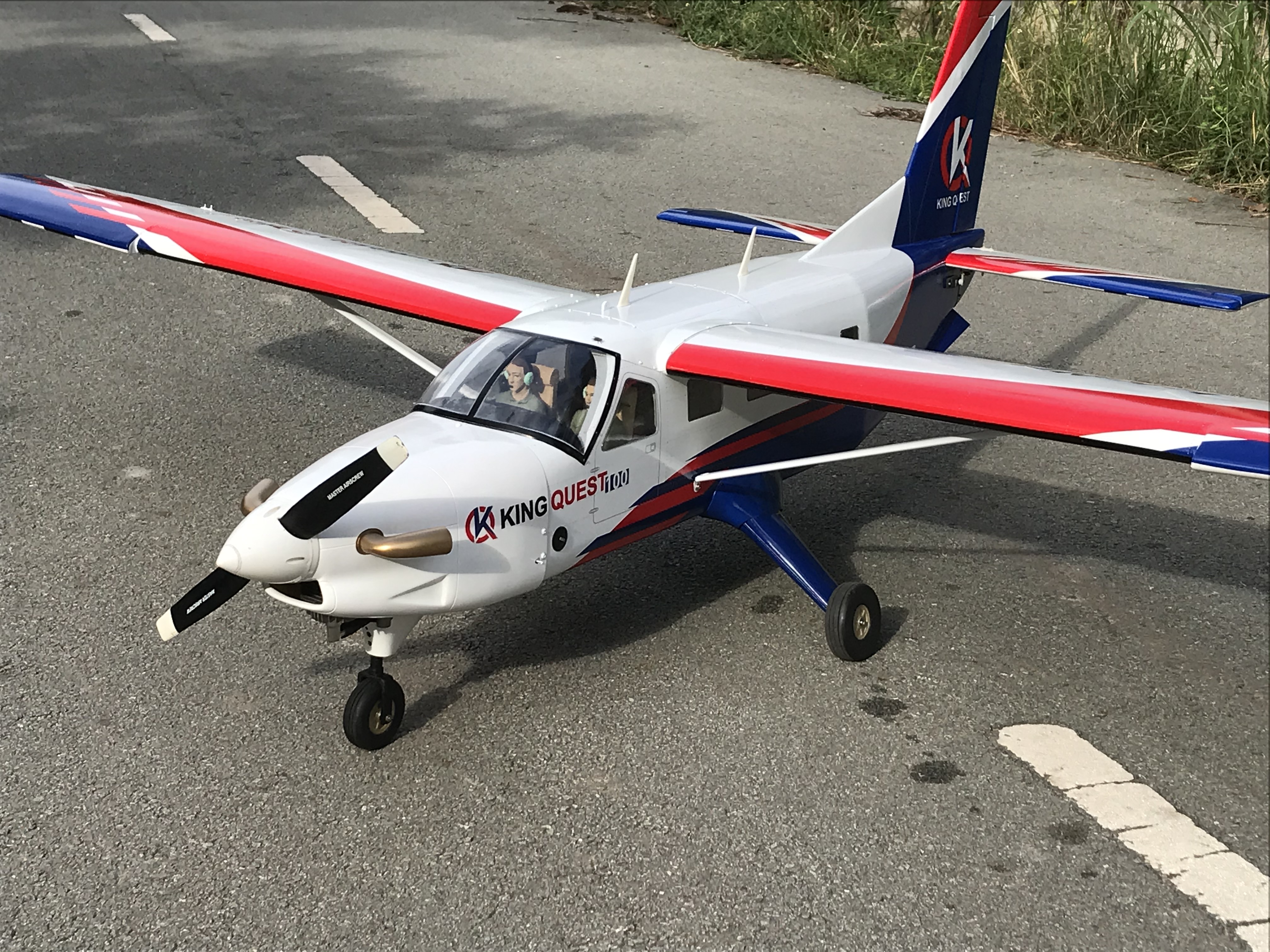

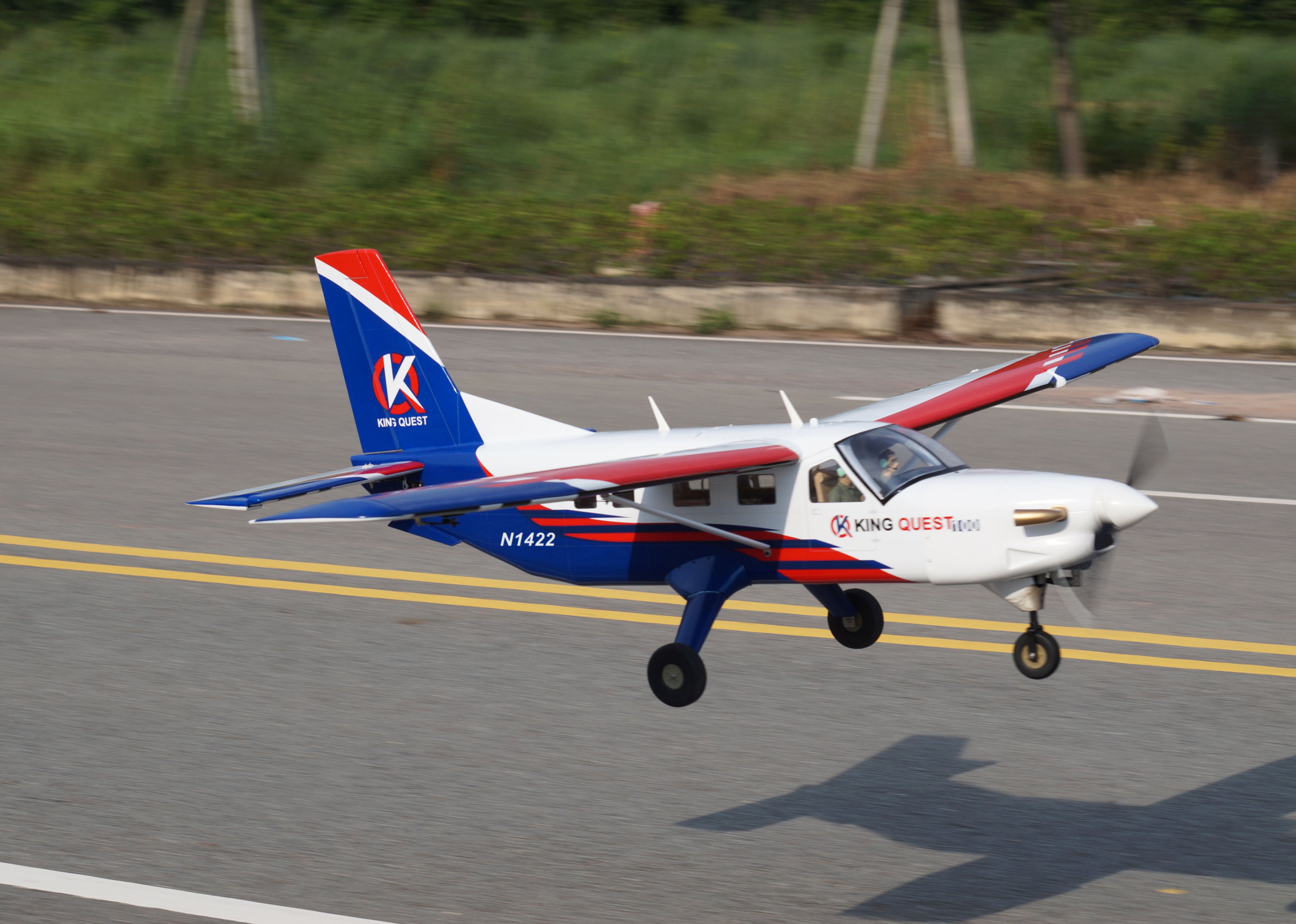

Now , VQ Introduce the King Quest Kodial 20cc size EP-GP .This Kodiak come with 2 x painted pilots and pilot seat . With the large battery hatch , you can use either an Electric motor or a Nitro engine . With a total weight of just 5,8 kilograms and large wingspan ( 2,2m ) , it will fly like a high wing trainer .

 Features:
- All Balsa and lite-ply construction
- Fully covered in weathered detail

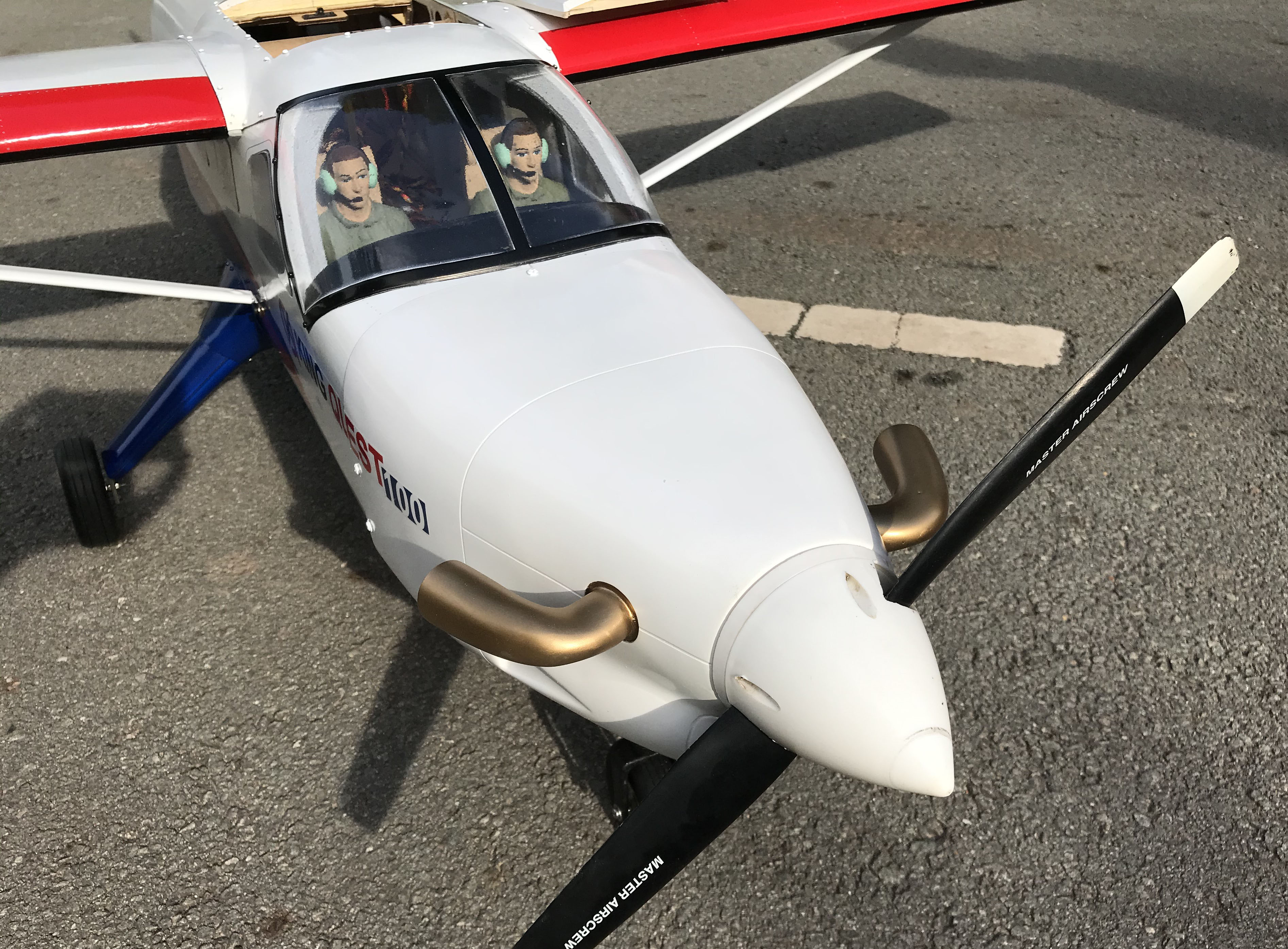

- Fiberglass cowling
- Control surfaces pre-hinged and installed
- Two piece wing with aluminium wing joiner
- Big battery hatch for Electric version

 Specifications:
- Wingspan: 2210mm
- Length: 1580mm
- Weight (ready to fly): 5.7 -6 kg
- 3 x 19 grams servo for elevator and rudder)

- Nitro Engine 2 stroke from 120 (OS.120 AX)
- Nitro Engine 4 stroke from 120 (Saito FA-125)
- Gasoline Engine 2 Stroke from 20cc (OS.120 AX , OS GT-22)
- Gasoline Engine 4 stroke from 21cc (Saito FG-21)
- Electric Motor : Brushless Motor Boost 120

- 7 channels with 8 servos
- 5 standard servo for Aileron, Flap, Throttle and nose wheel

 Includes:
- Assembly instructions with stage photos

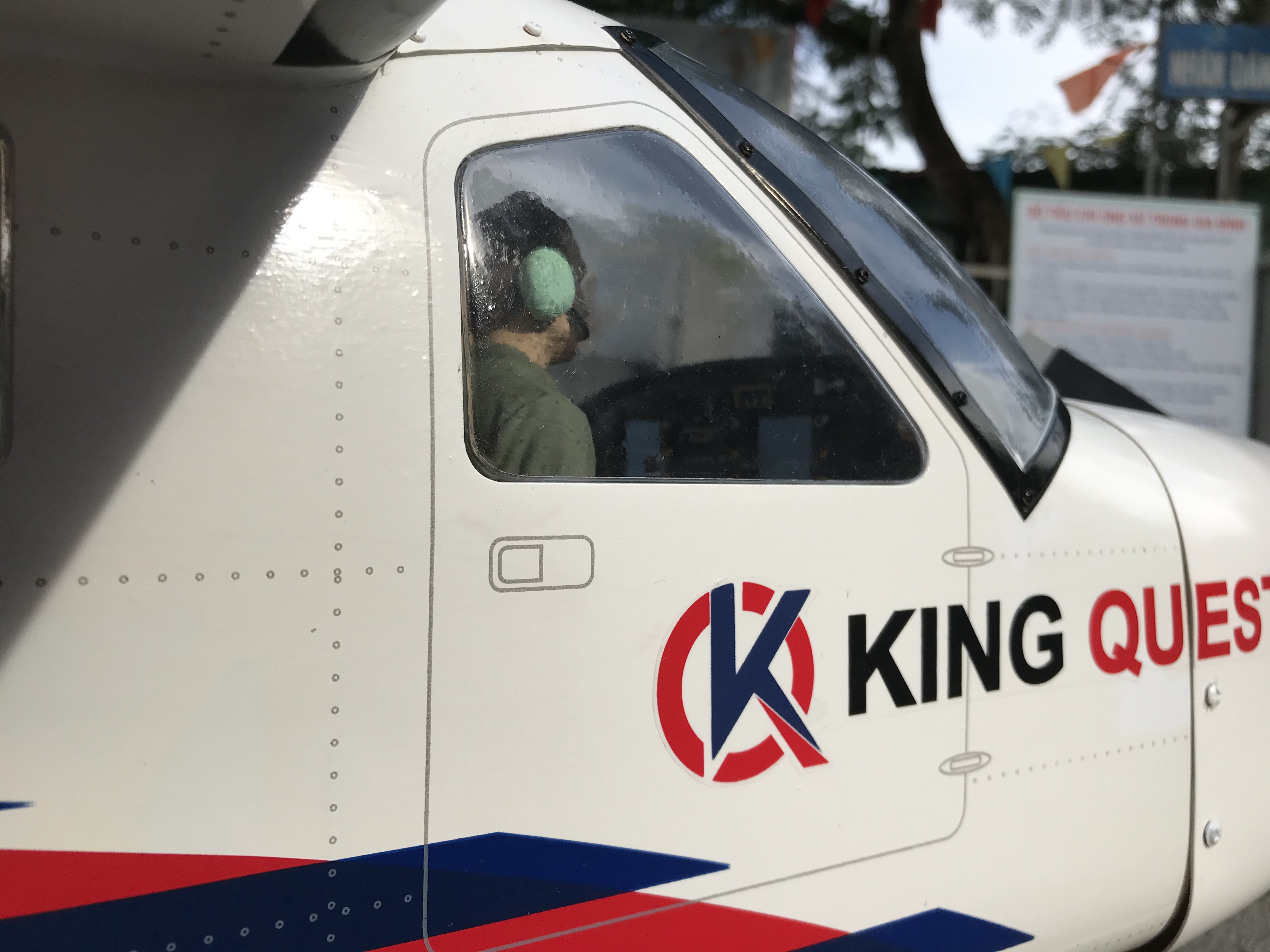

- Plywood seat with 2 x painter pilot
- Fiberglass cowling
- Aluminium landing gear , Plastic cover & Wheels
- Aluminium wing joiner
- Wing struts - Engine mounts
- Fuel tank
- Decals and all hardware

Does not include: radio, motor, glue, and silicon fuel line

Product code: VQA164RW

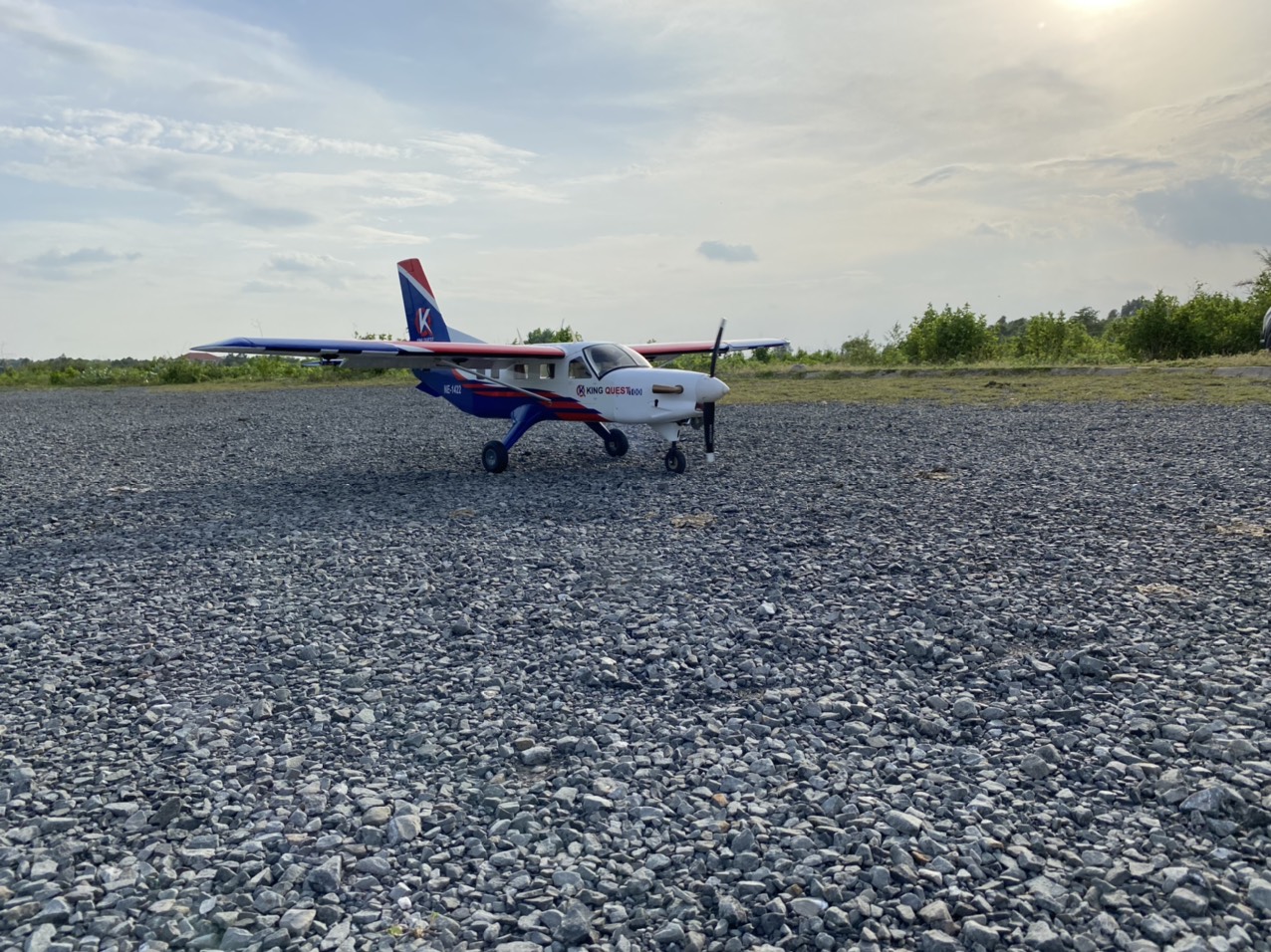

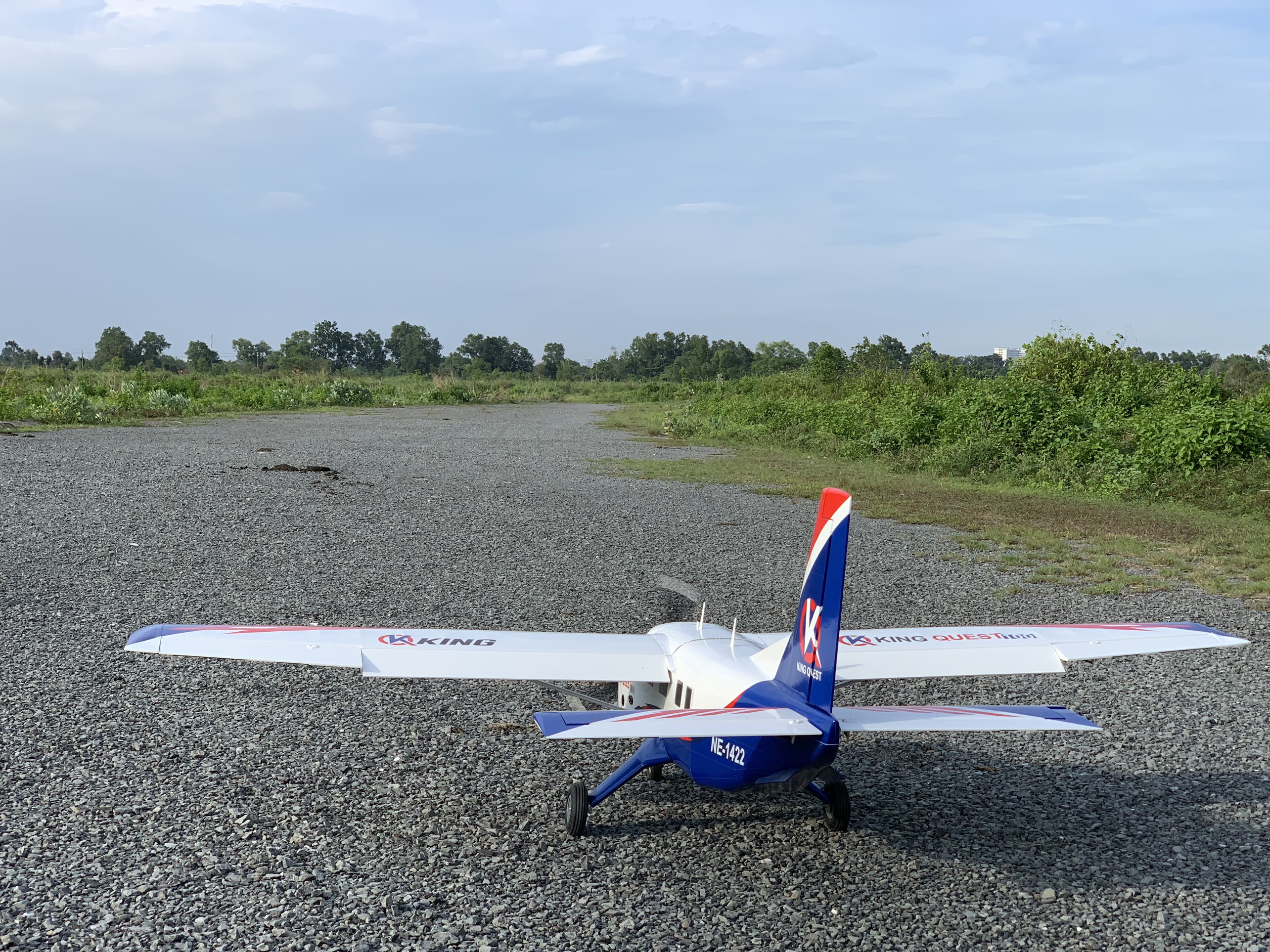

Photo gallery
