 Fokker Dr.1 25cc  (25cc size EP/GP)

The Fokker DR-1 (DR standing for Dreidecker, or 3 wings) was arguably the most famous plane of World War I. This is probably because it was associated with the Red Baron. The Fokker DR-1 was 5.77m long, 2.95m high, and had a wingspan of 7.19m. The airframe was made out of steel tubing that was covered in aircraft doped canvas. When it was empty, it weighed 405kg. It had one 80kw engine and could fly a maximum speed of 185Km/H for a maximum time of 1 hour and 30 minutes at a maximum altitude of 14,000 ft.

VQ Model introduces the Fokker DR-1 in the popular size ( 25-30cc size ) . You have a lot of power options, from nitro engine 4-stroke 140, gas engine 2- stroke from 25cc, gas 4-stroke from 30cc , electric motor (Boost 140) and and especially it can fit perfectly with Saito FG-33R3. And with lots of scale details like WWI machine gun , WWI wheel and scale pilot. All will make your Fokker DR-1 the most scaled Fokker Dr1ARF in your flying field.

 Features:
- All Balsa and lite-ply construction
- Fully covered in weathered detail
- Fiberglass cowling
- Scale WWI wheel
- Scale Machine gun
- Control surfaces pre-hinged and installed

 Specifications:
- Wingspan: 1850mm
- Fuse length: 1420mm
- Weight: 7,4 - 7,8 Kg

- Nitro Engine required : 140 (4 stroke)
- Gasoline Engine 25-33cc -2 stroke / 30cc – 33cc R3 -4 stroke
- Recommended Engine : 2 stroke : Zenoah 26cc 4 stroke : Saito FG-33 R3
- Electric motor : Boost 140 – KV=225
- Battery :Lipo Battery 6S 6300mAh x2
- Propeller : 17 x6 - 18x6 (for engine) – 21 x8 ( for electric motor )

- Radio req : 6 channels with 6 standard servos
- Standard servo : 2x Aileron , 2x Elevator , 1x Rudder , 1 x Throttle
- Recommended Servo : Hitec HS-425BB

 Includes:
- Assembly instructions with stage photos
- WWI Scale Wheels

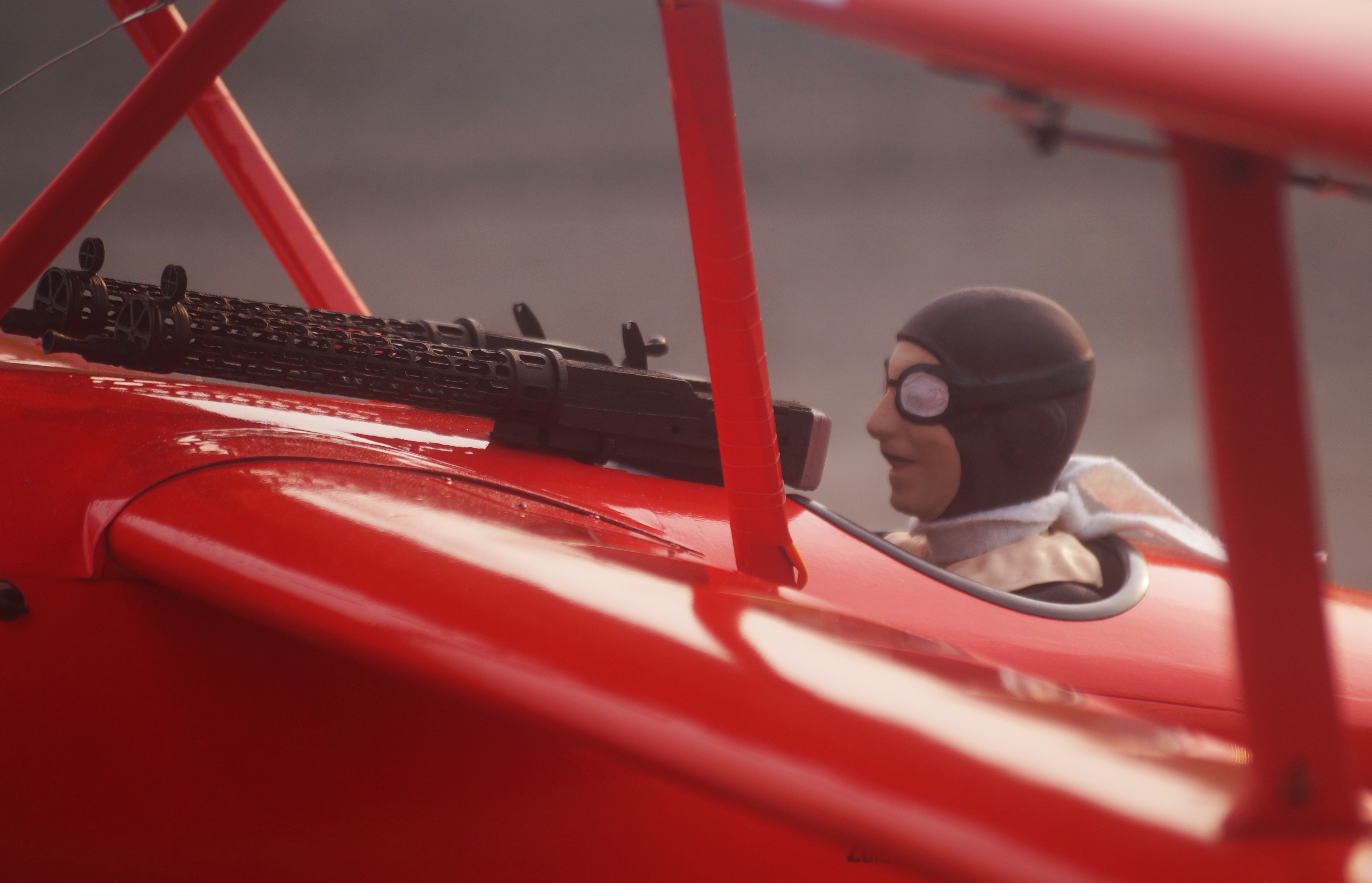

- WWI Painted Pilot

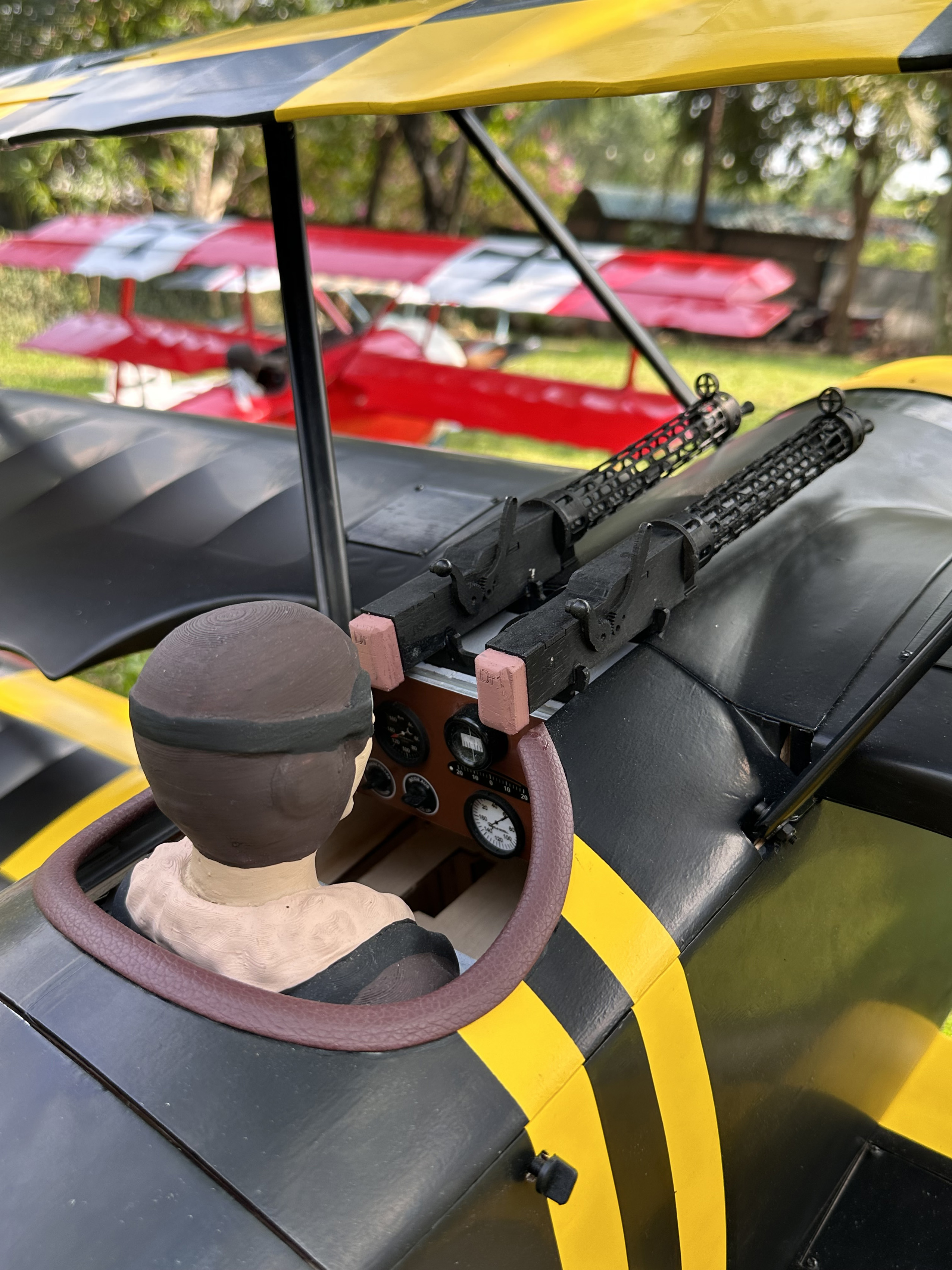

- Scale WWI Machine Gun
- Fuel tank
- Fiberglass cowling
- Aluminium wing joiner
- Decals and all hardware

Does not include: radio, motor, glue, and silicon fuel line

Product code: 1/VQA169R 2/VQA169CM
|

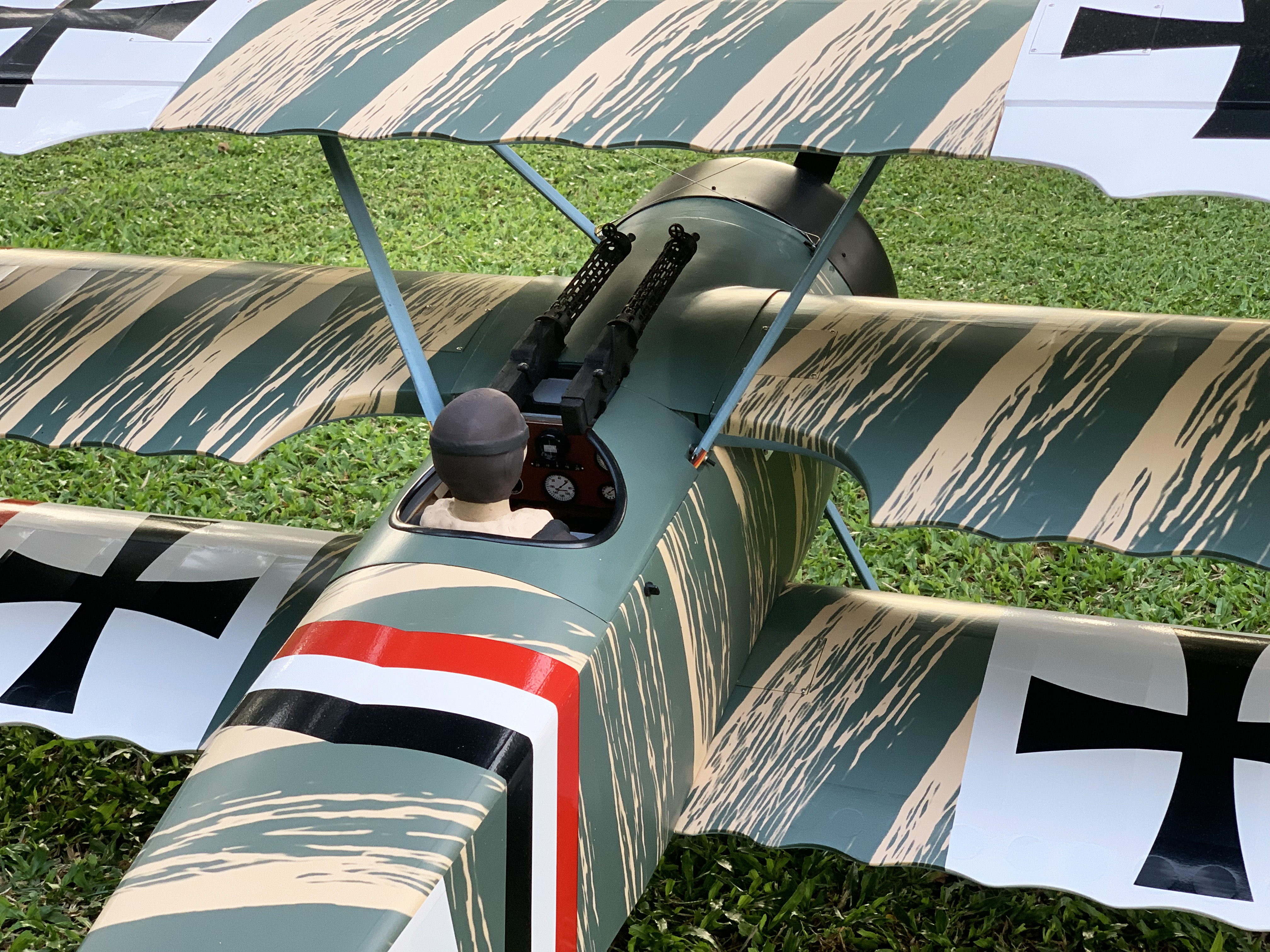

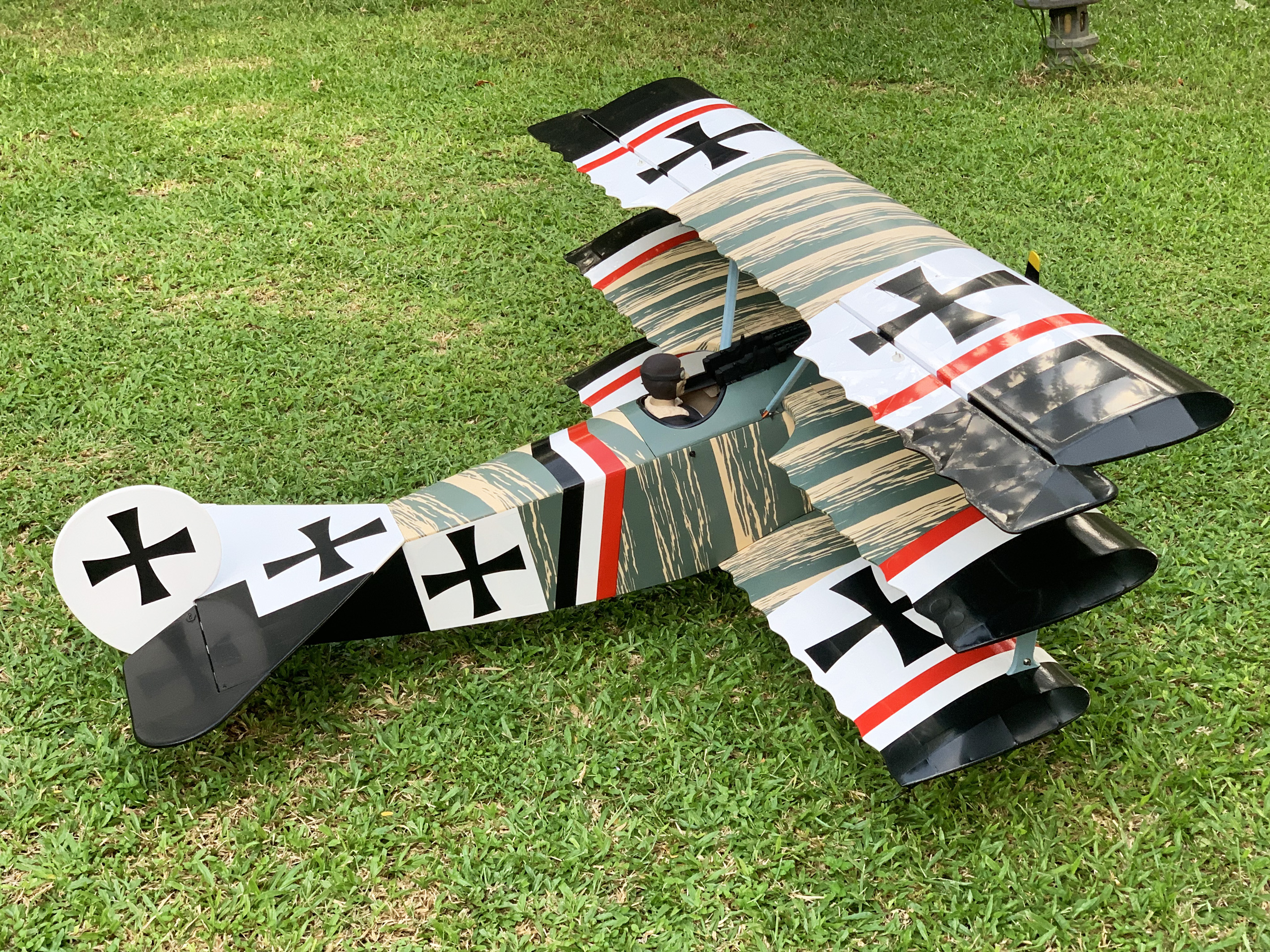

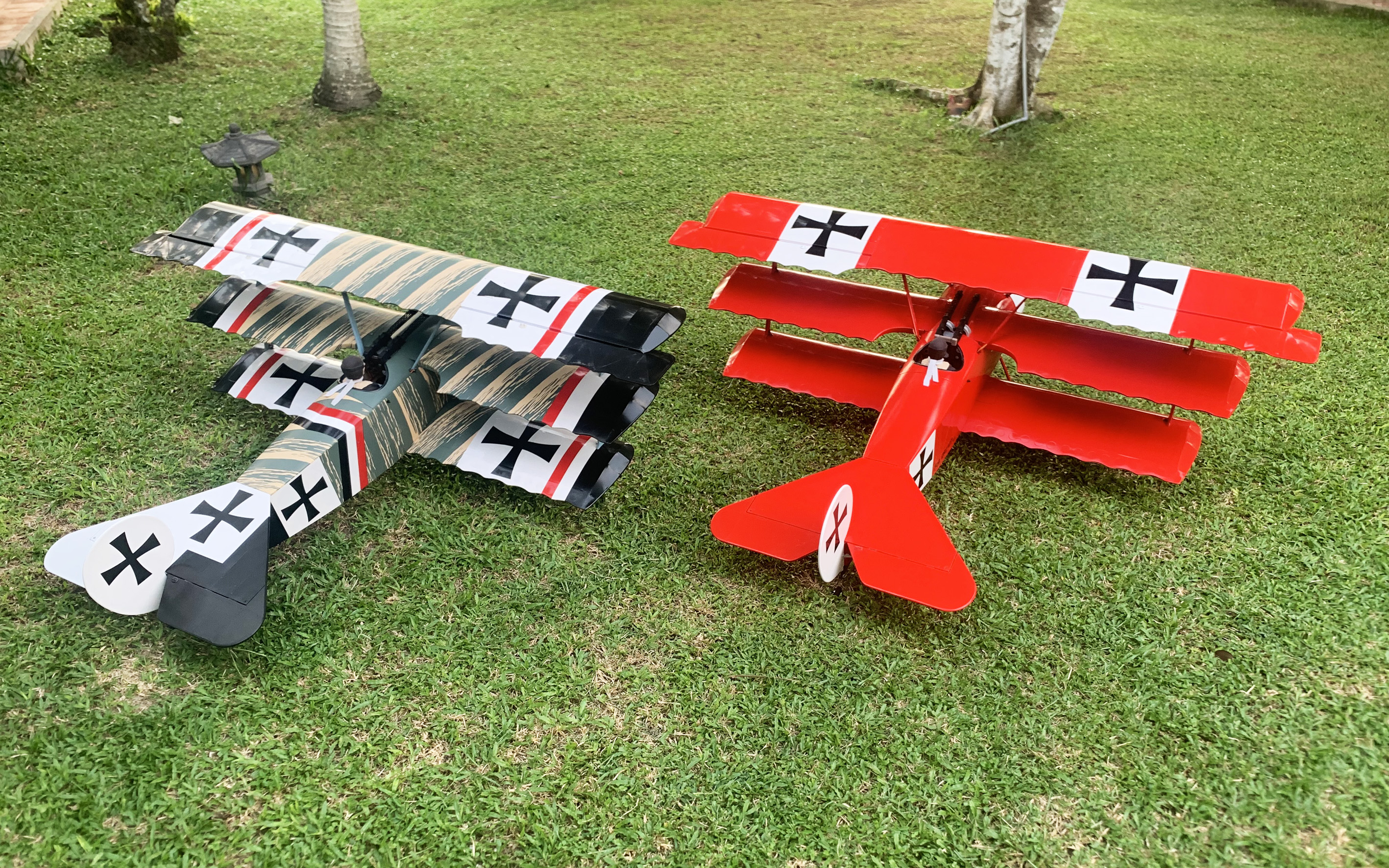

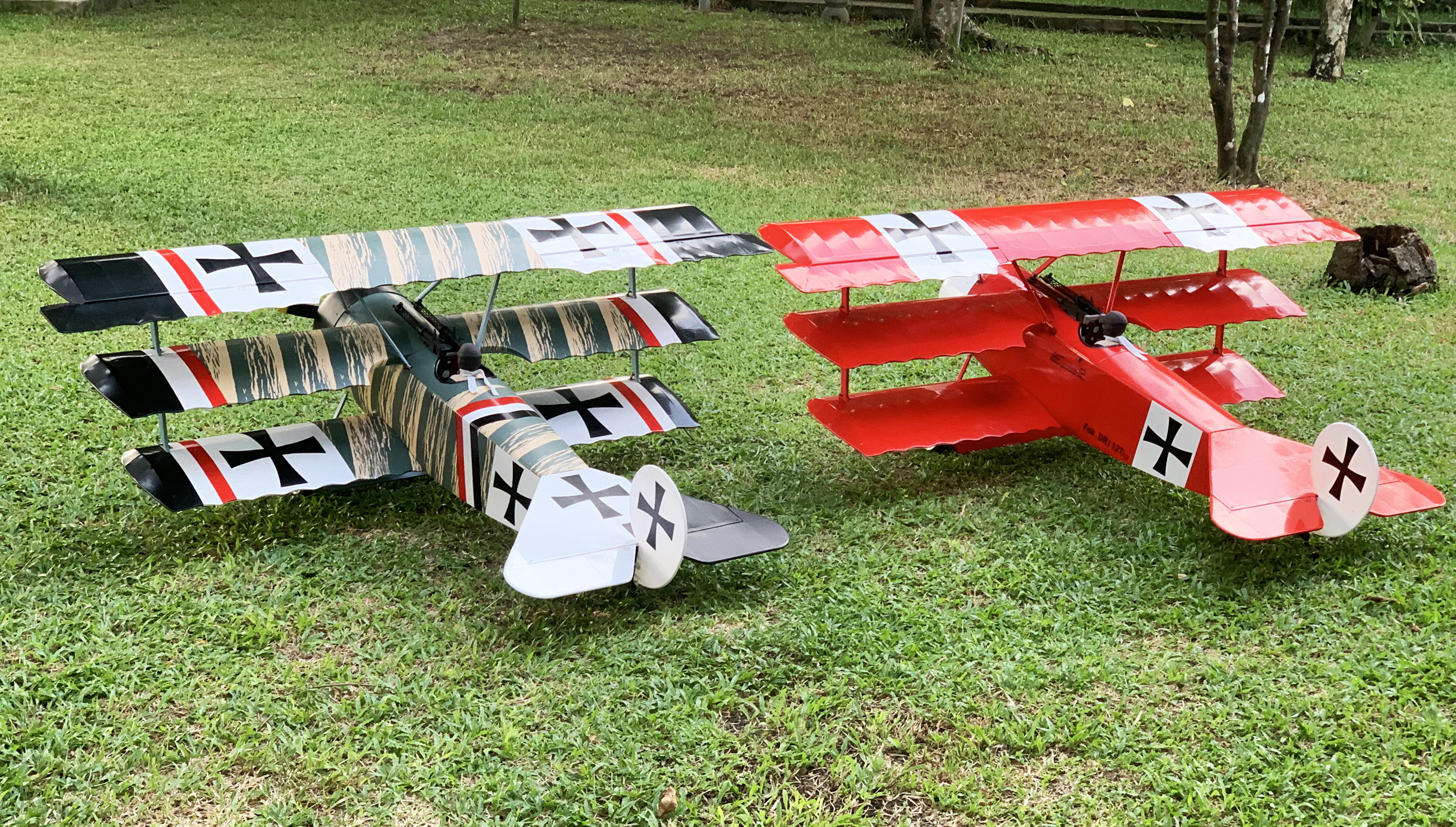

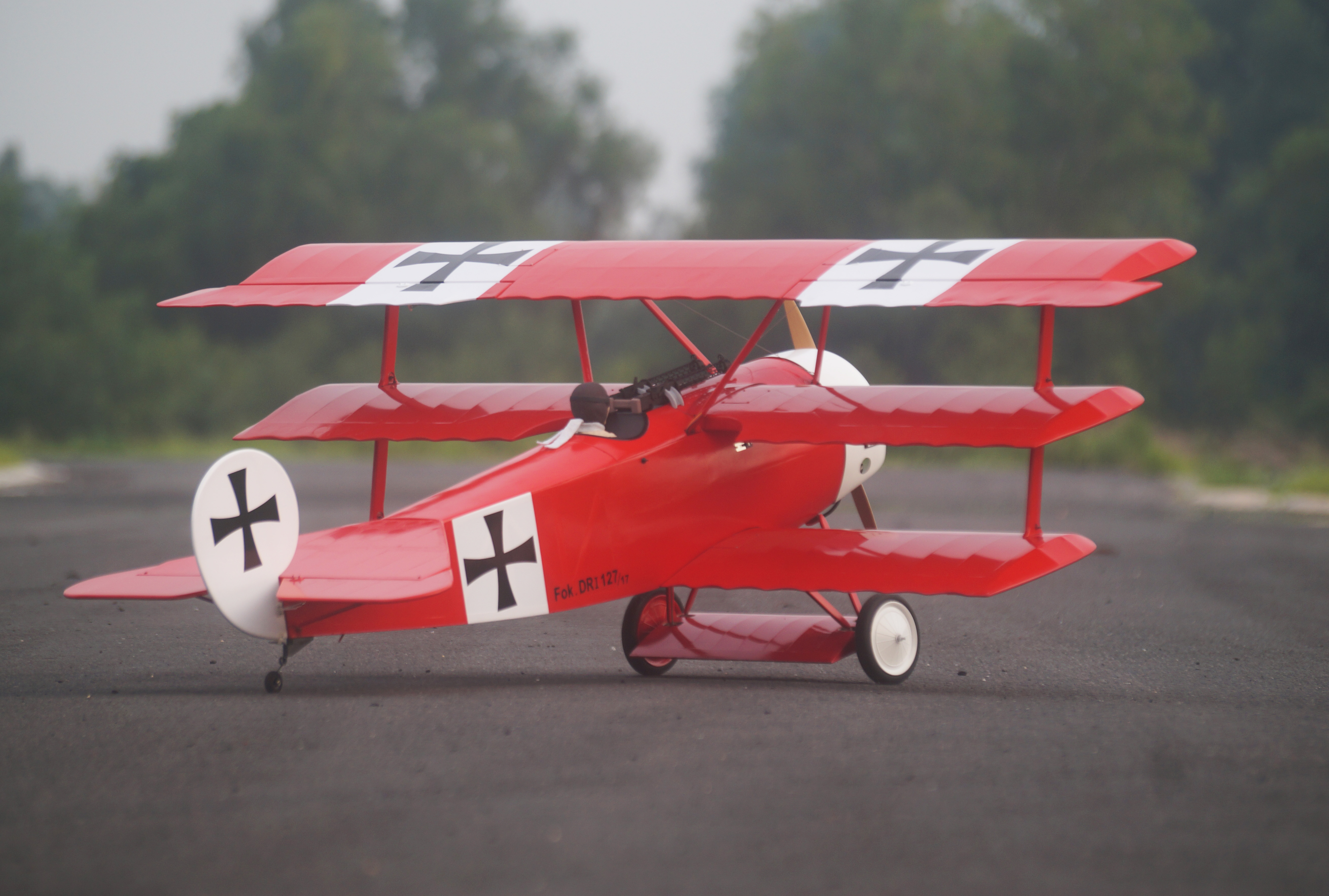

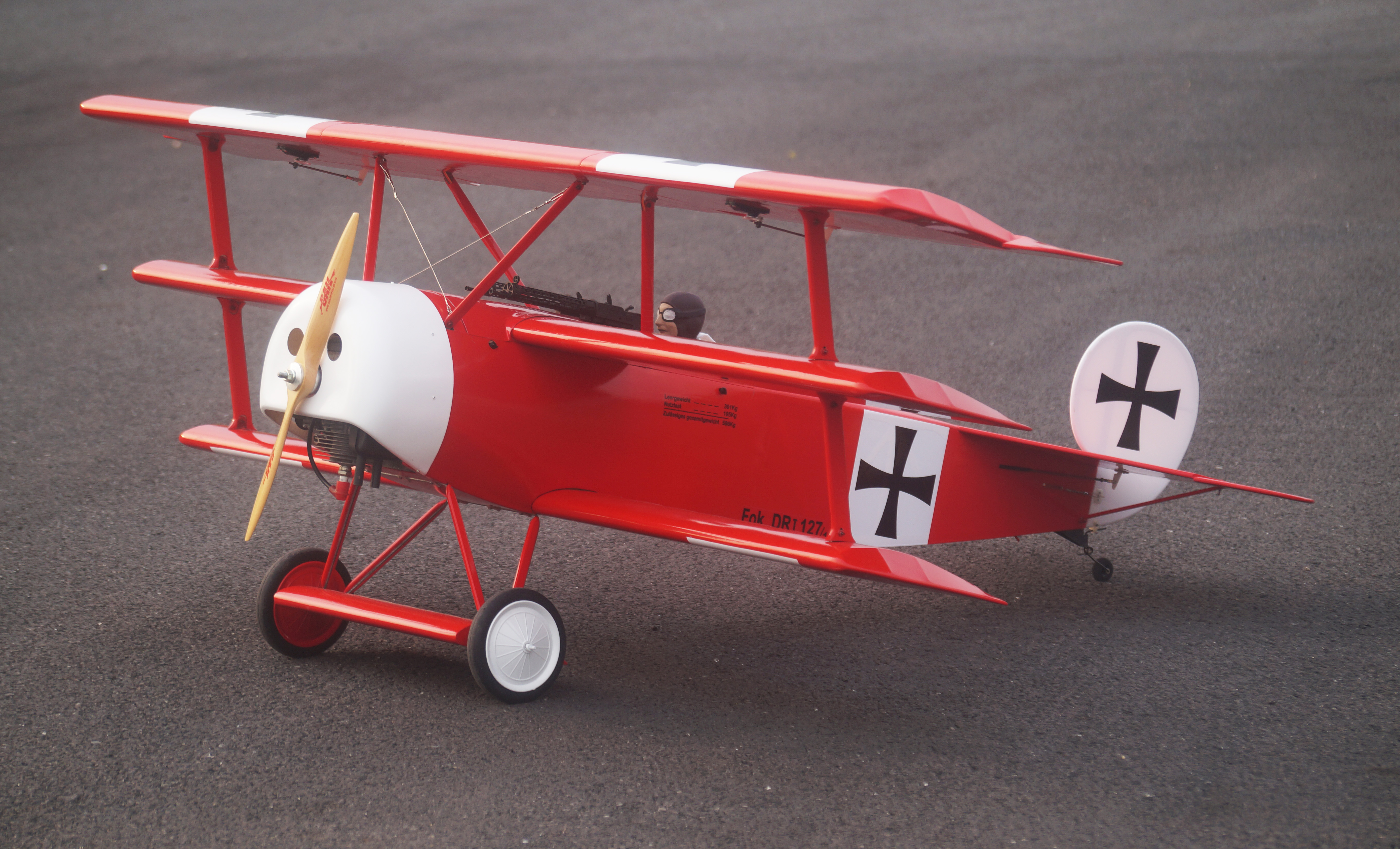

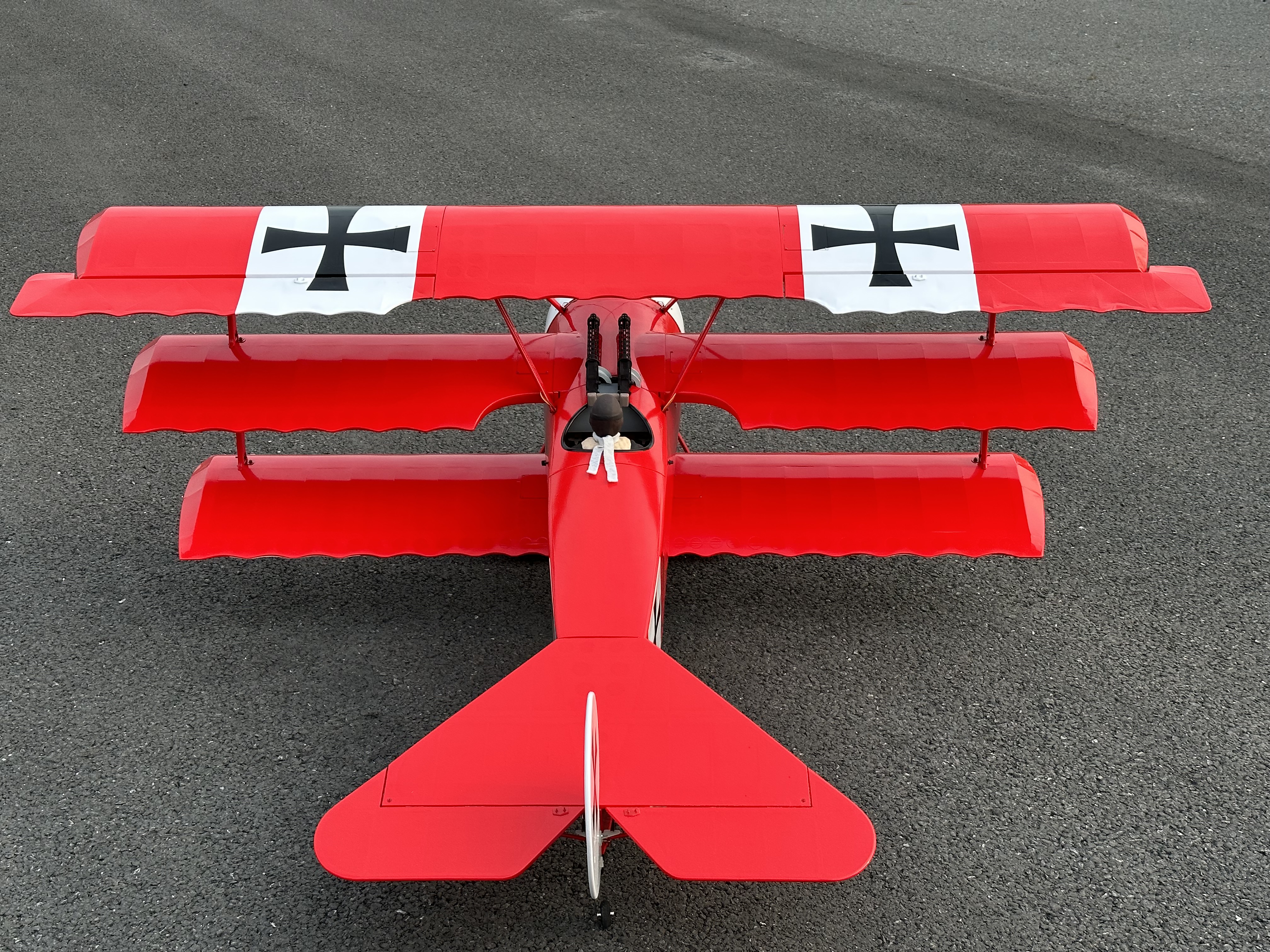

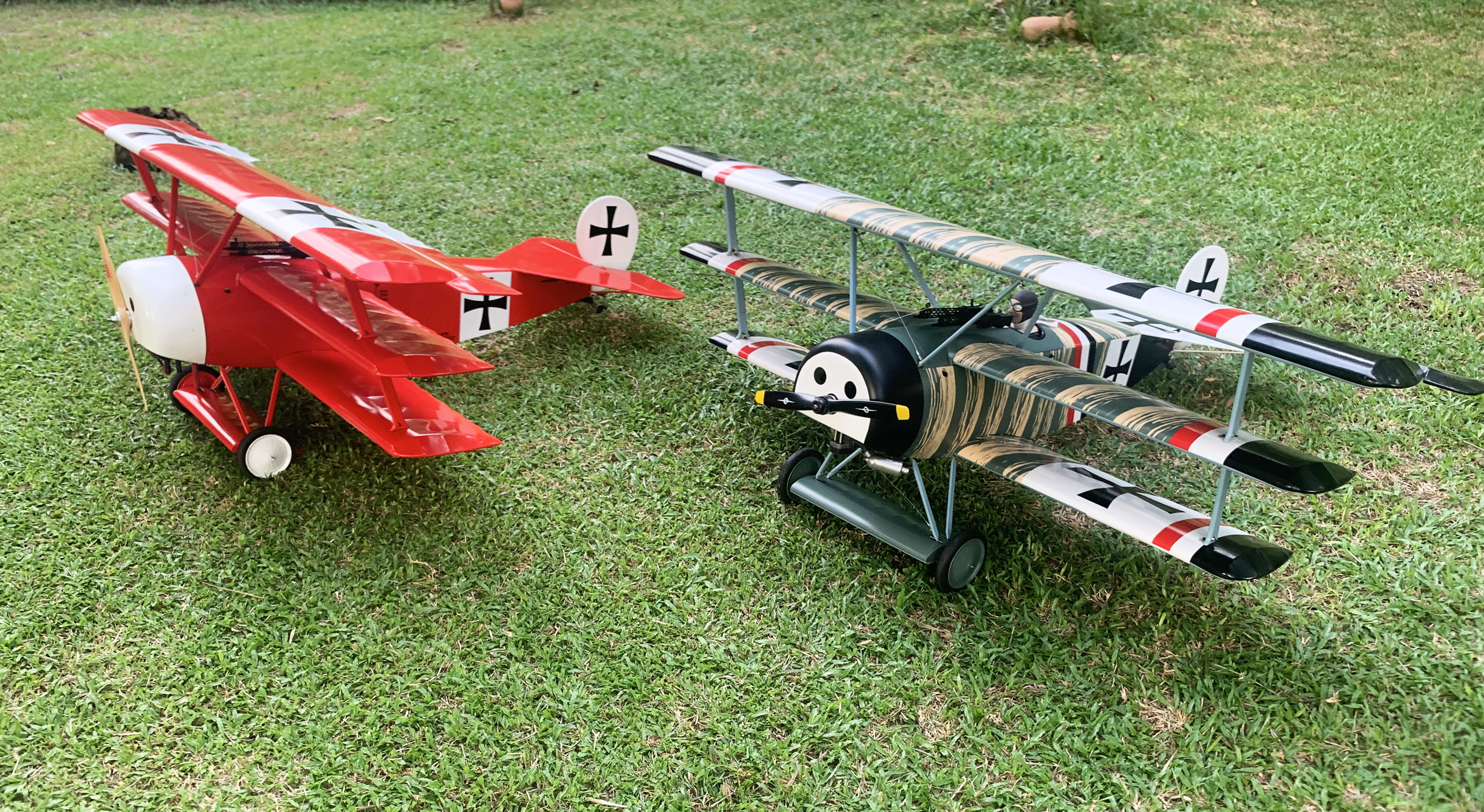

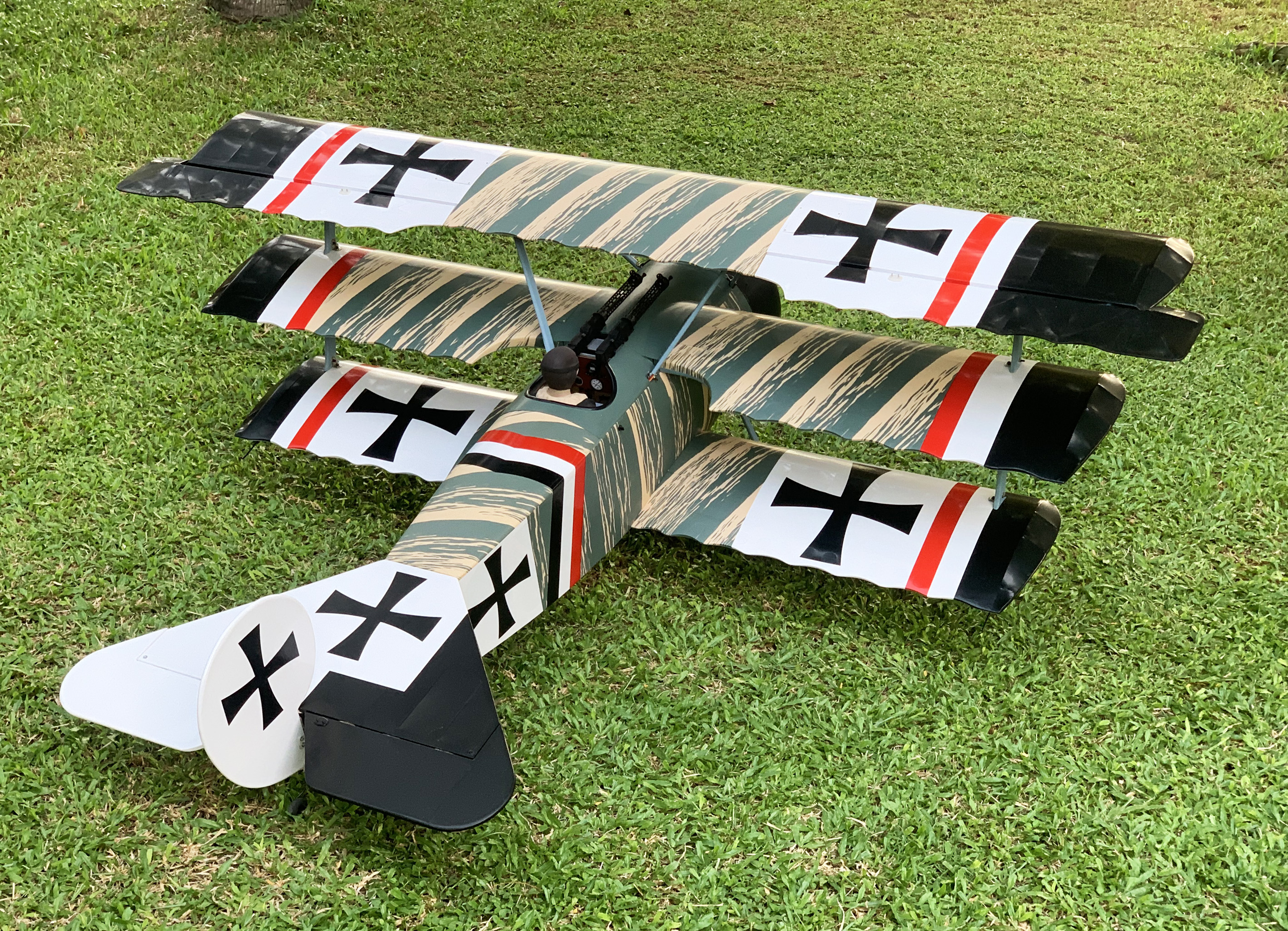

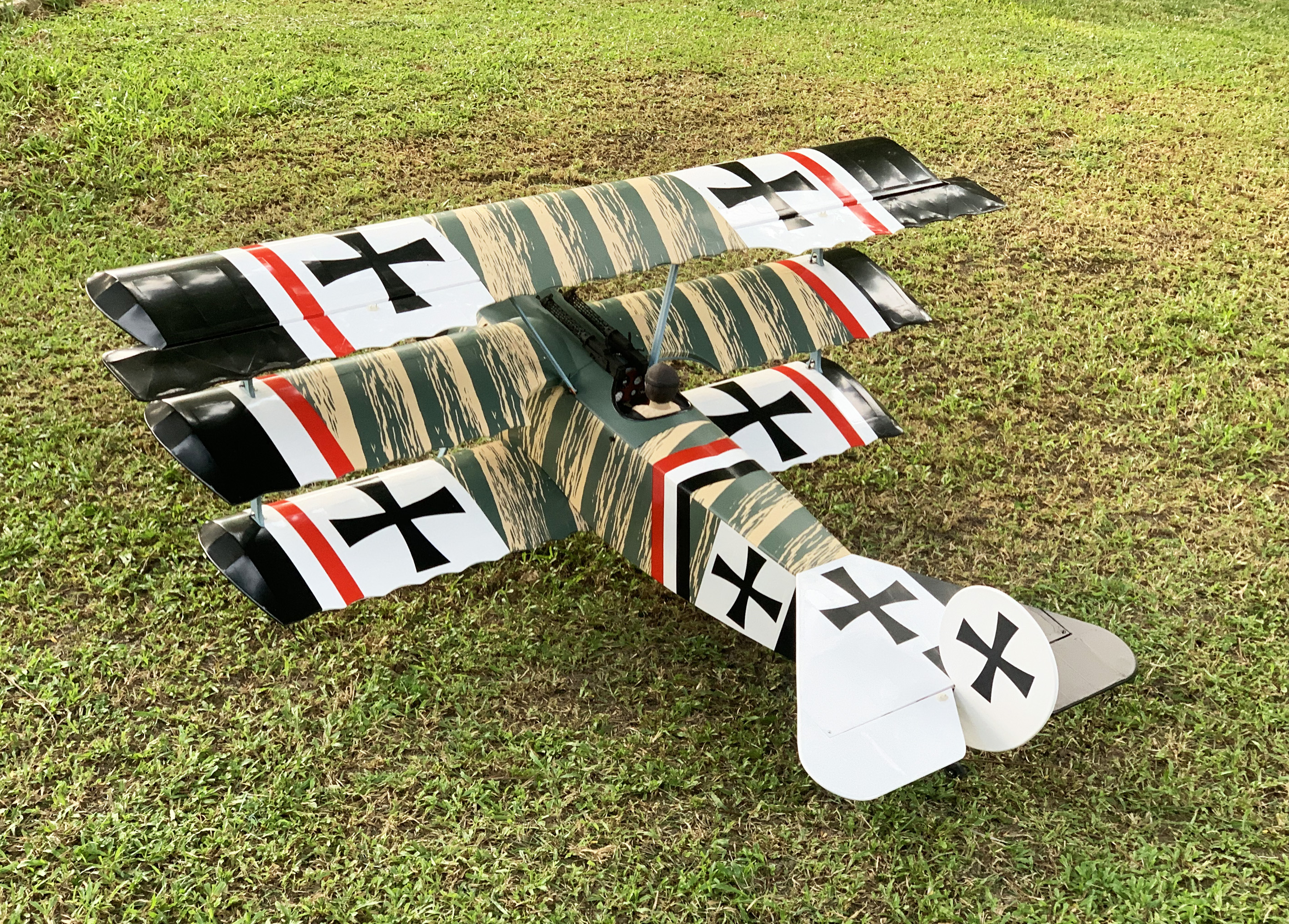

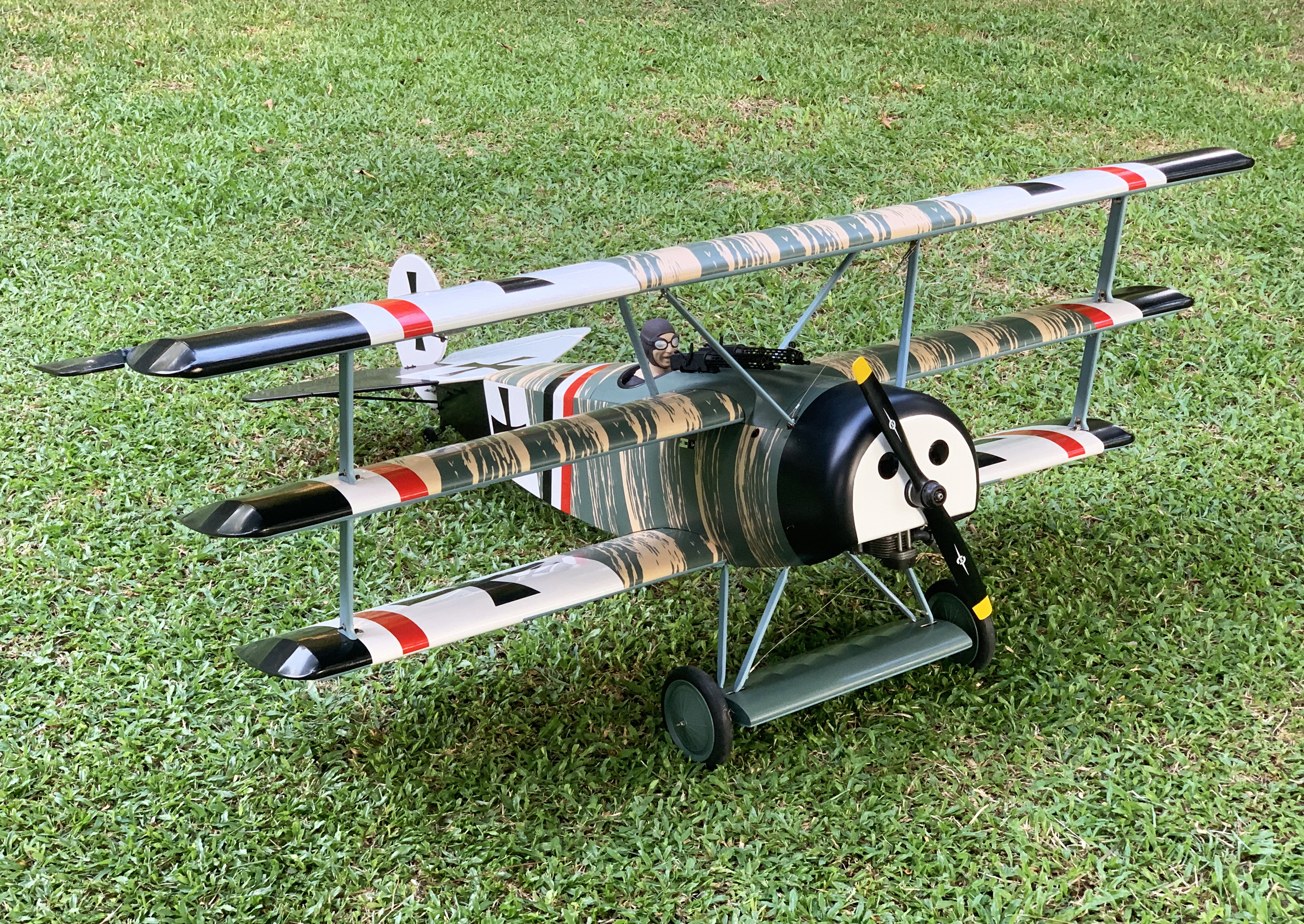

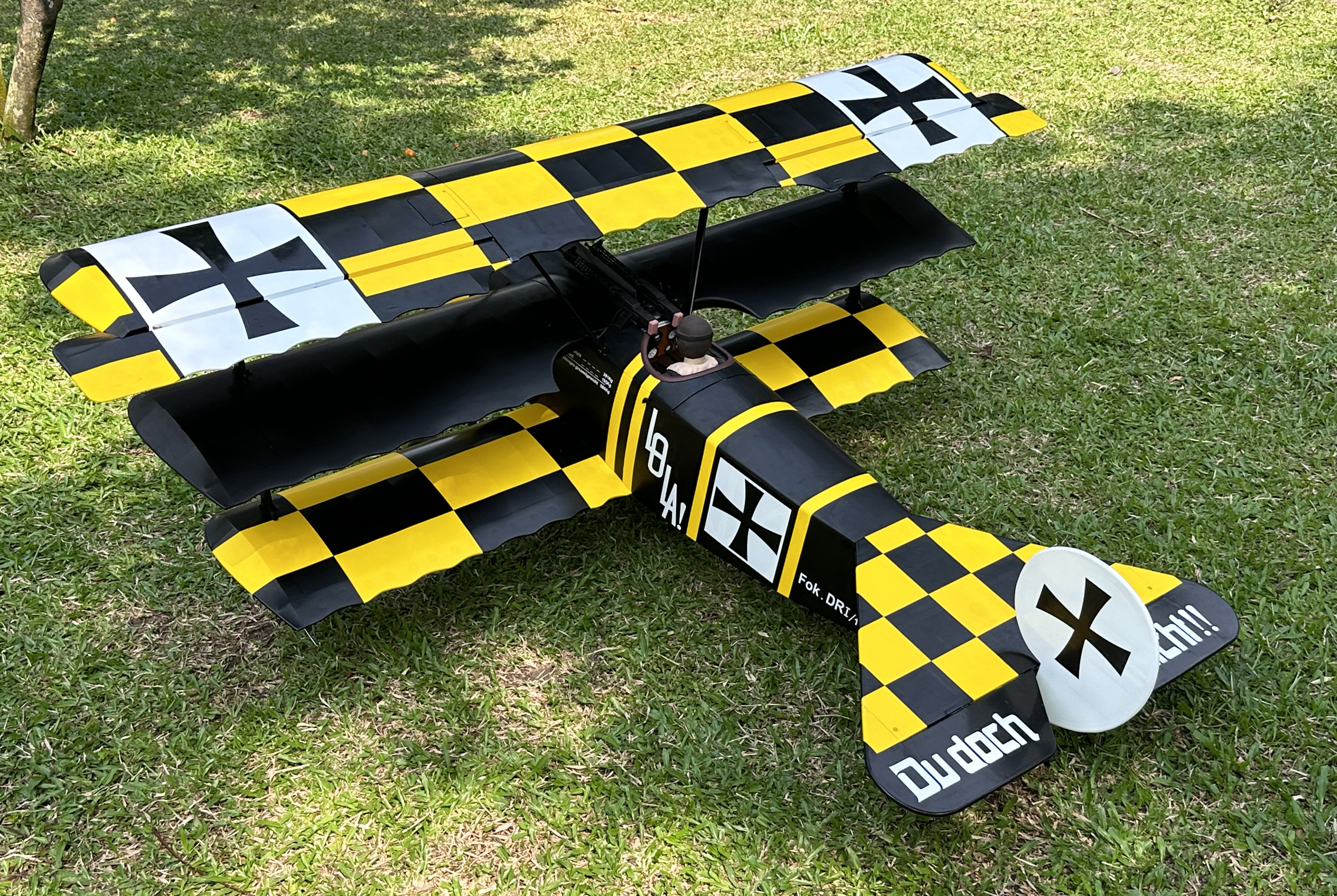

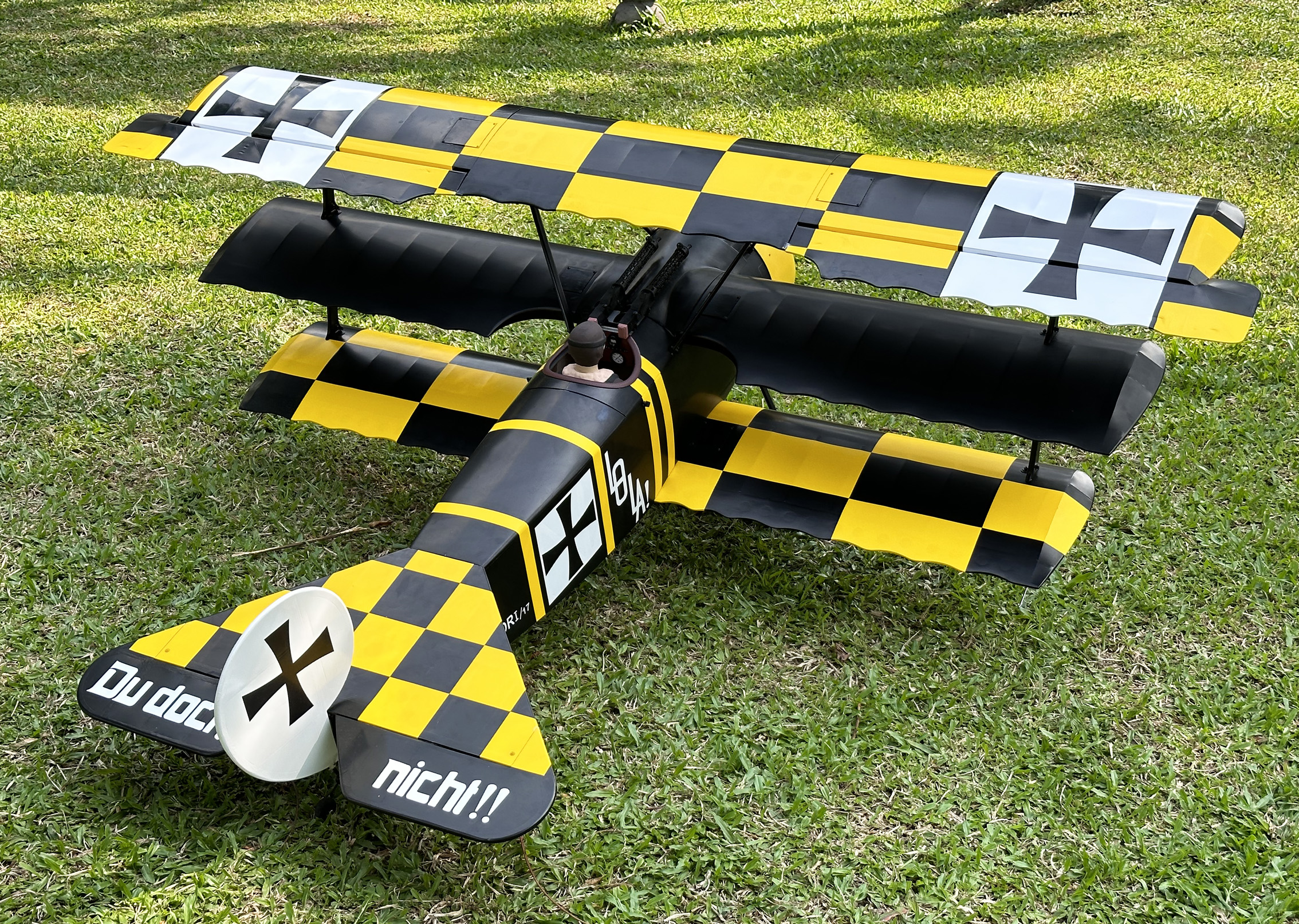

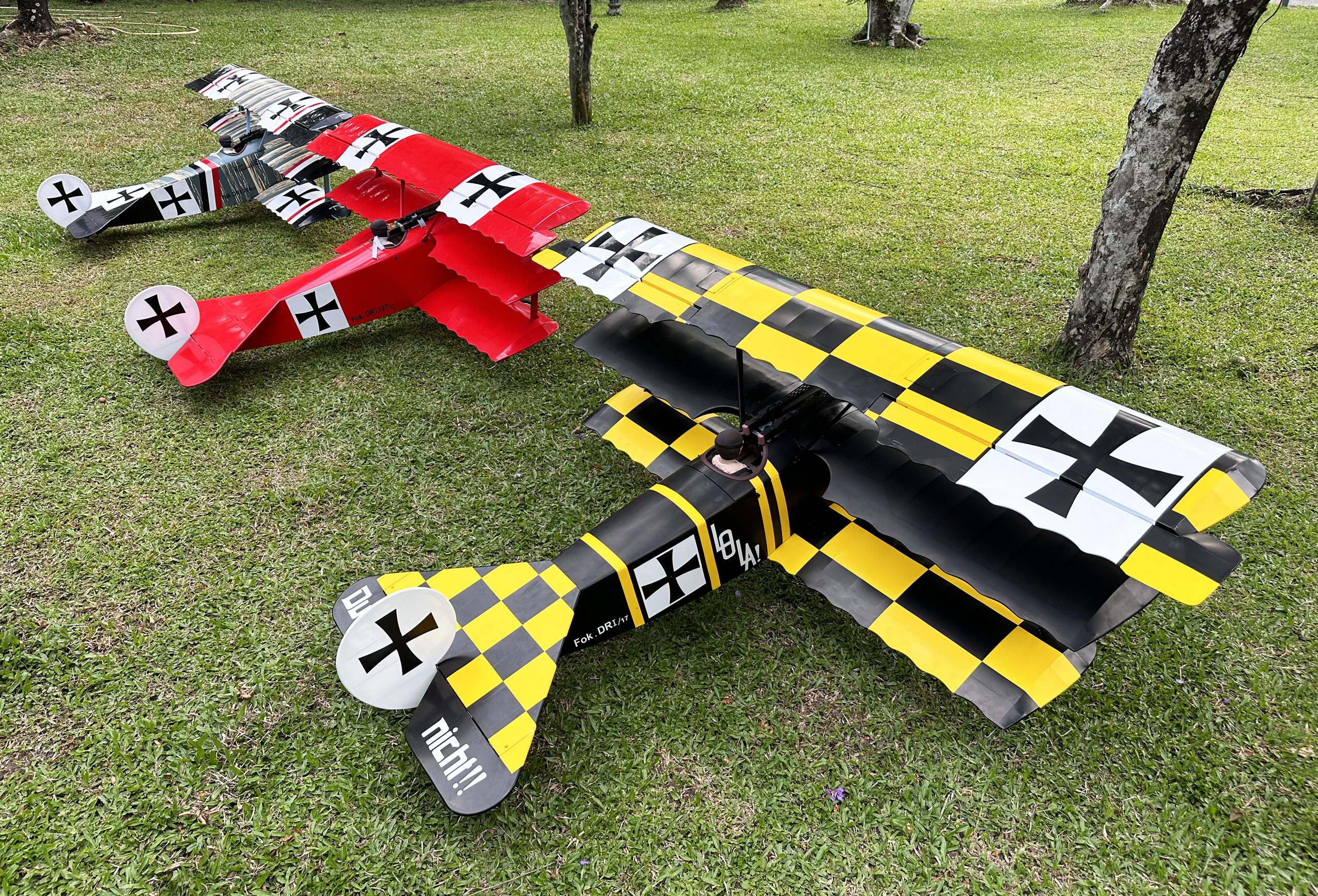

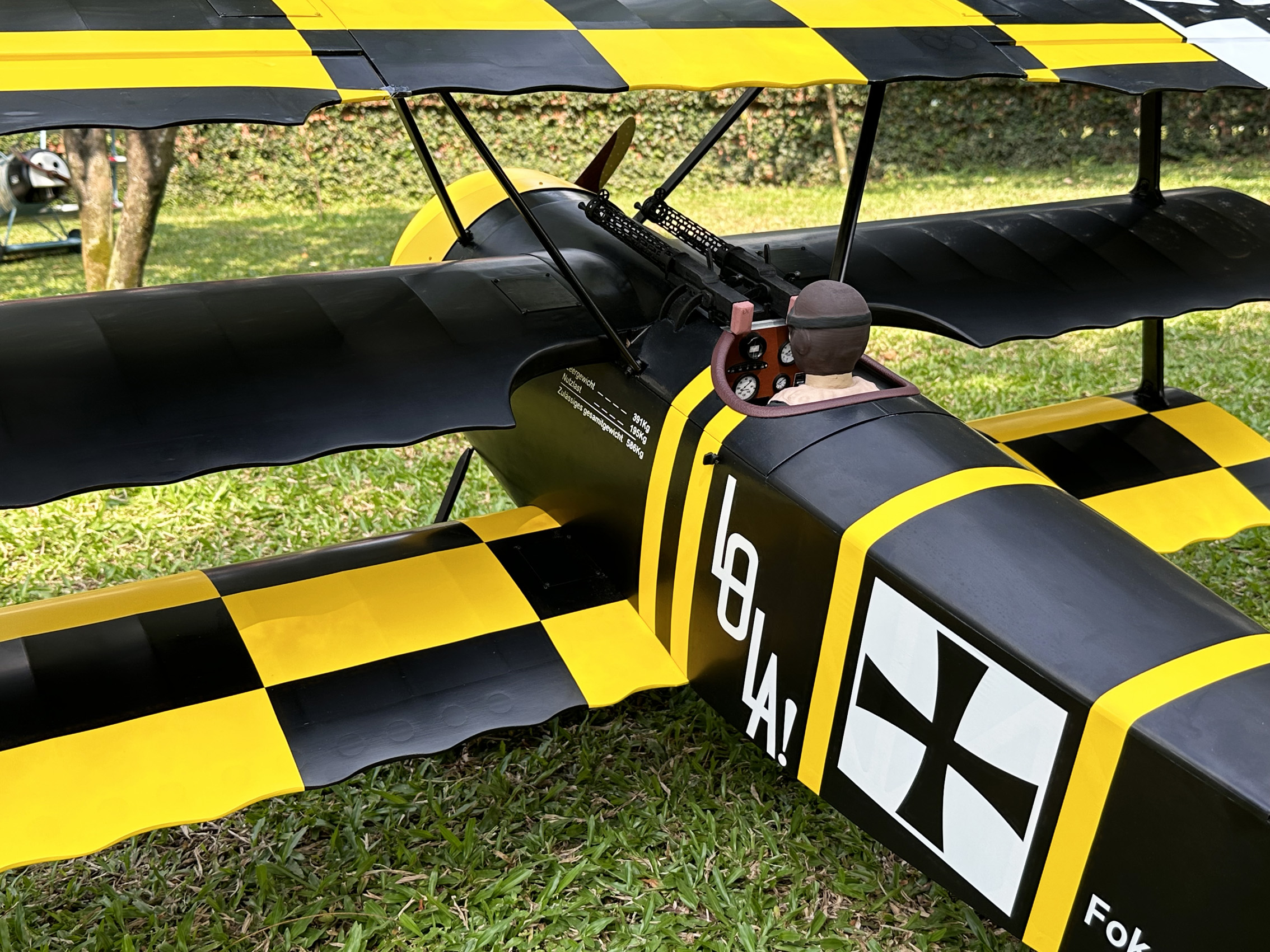

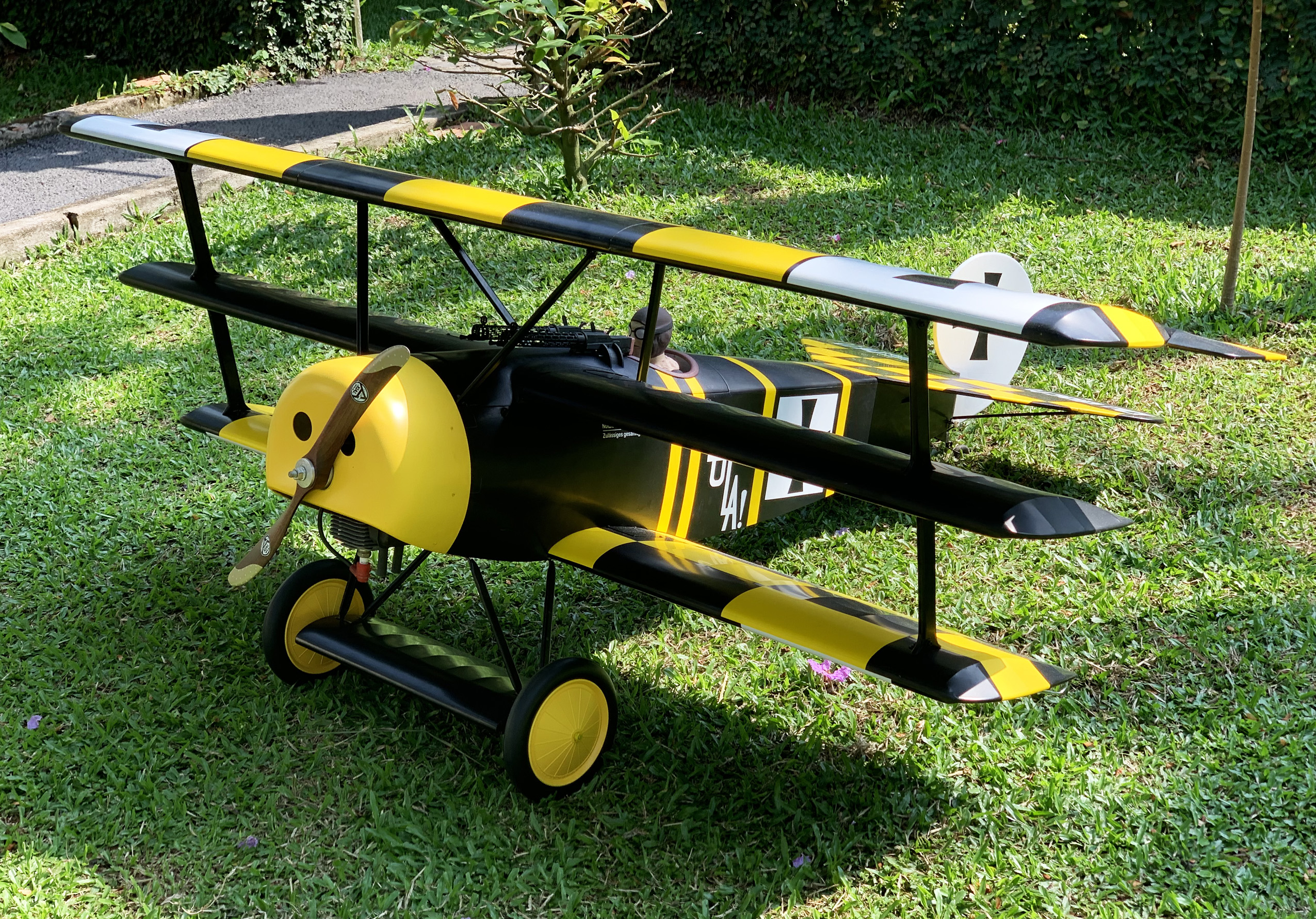

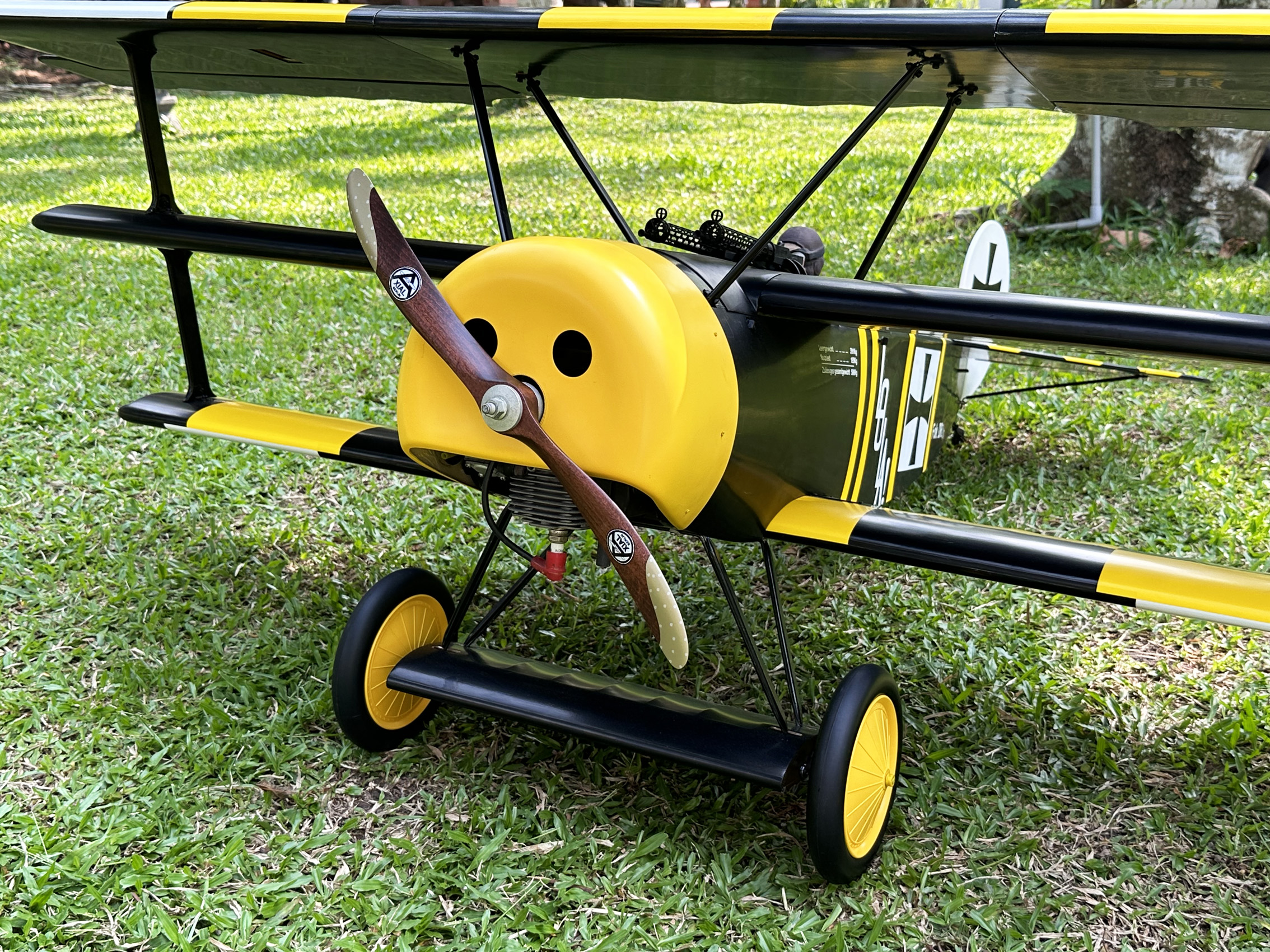

Photo gallery
