 AICHI D3A1 “VAL”    (46 size EP-GP - warbird category)

The Aichi D3A Type 99 Carrier Bomber, (Allied reporting name "Val") was a World War II carrier-borne dive bomber. It was the primary dive bomber of the Imperial Japanese Navy (IJN), and participated in almost all IJN actions, including the attack on Pearl Harbor. The Aichi D3A was the first Japanese aircraft to bomb American targets in the war, commencing with Pearl Harbor and U.S. bases in the Philippines, such as Clark Air Force Base. Vals sank more Allied warships than any other Axis aircraft, despite being considered obsolescent when the war started.

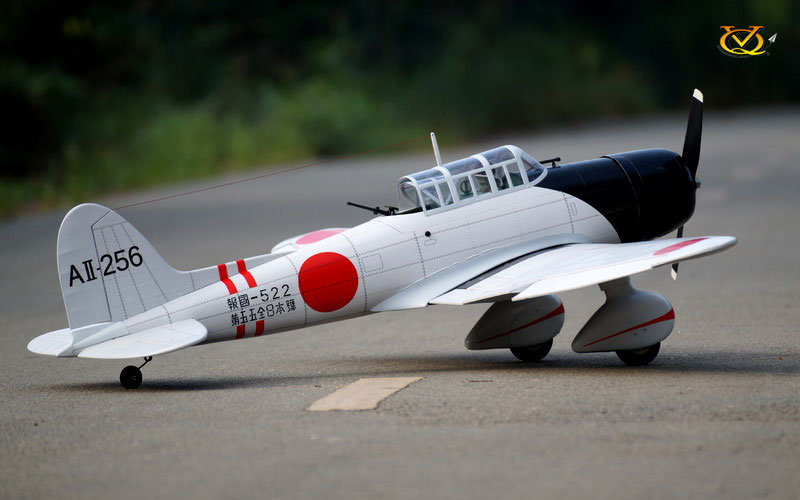

Now, VQ Introduces the D3A1 Aichi 46 size EP-GP as a super scale series (3S). This D3A1 Aichi comes with 4 scale flap, 1 x painted pilots, machine gun, antena. Also we have supply in the kit some scale detail make by ply wood sothat you can make your D3A1 Aichi  look like a real one .

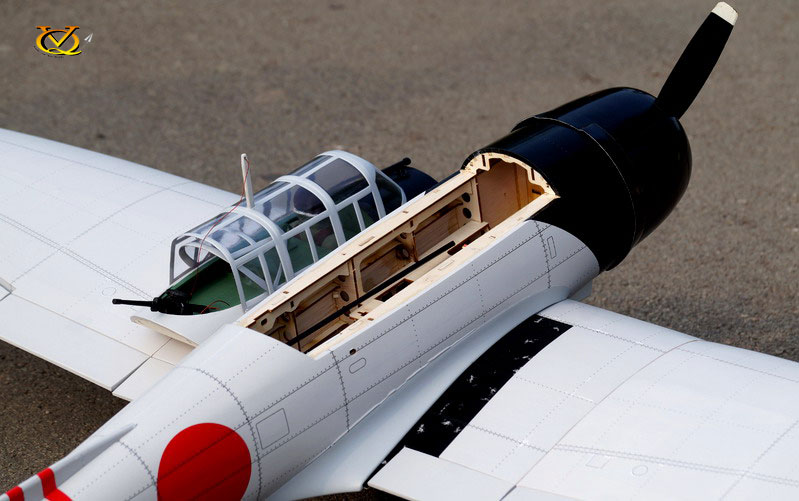

With the big battery hatch, you can use both Electric motor or Nitro engine .

With the scale Fiberglass Wheel cover plastic machine gun, it makes this D3A1 Aichi become one of the best Balsa scale warbird 46 size in the market.

 Features:
- All Balsa and lite-ply construction
- Fully covered in weathered detail
- Fiberglass cowling
- Plastic machine gun
- Reinstalled painted pilot
- Control surfaces pre-hinged and installed
- Three piece wing with Wing Joiner

 Specifications:
- Wingspan:  1540mm (60.6 in.)
- Fuselage Lenght:  1120mm (44 in.)
- Weight (ready to fly): 3,5kg (7.72lbs) (vary with equipment in use)
- Glow Engine:  .46 (2 stroke) / .70 (4 stroke)
- Electric motor: Boost 50 motor
                       or any Electric Motor
                       same size with .46/2 stroke engine
- Battery: Lipo 14,8V  4500 mAh
- Radio: 8 channels with 8-9 servos (9 for nitro)
           3 x standard servos for Elevator, Rudder, Throttle
           6 x Mini servo (17grams)  for Flap – Aileron

 Includes:
- Assembly instructions with stage photos
- Tail wheel assembly
- Fiberglass cowling
- 1 x Fiberglass painted pilot
- 1 x Plastic machine gun
- Fiberglass wheel cover
- Wheels
- Scale detail by Ply wood
- Engine mounts
- Fuel tank
- Ply wood wing joiner
- Decals and all hardware

 Options:
Rear Pilot VQ-AP01 - Japanese pilot WWII

Does not include: radio, motor, glue, and silicon fuel line

Product code :  VQA138 Gray   VQA138 Green

Download instruction guide here

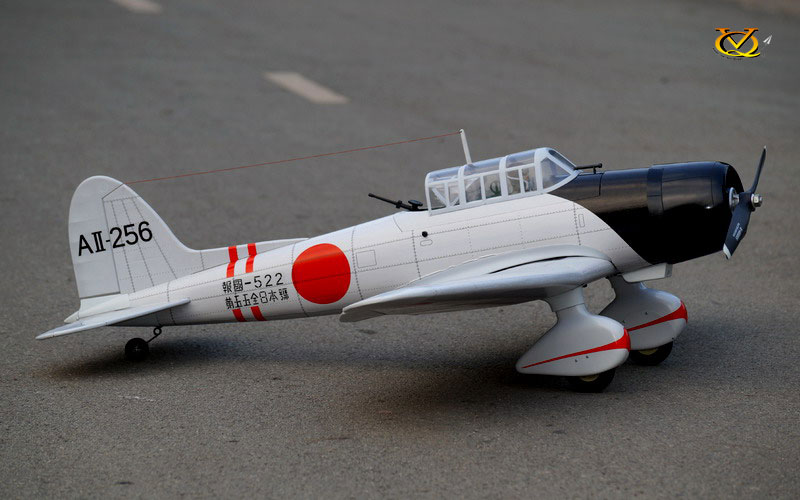

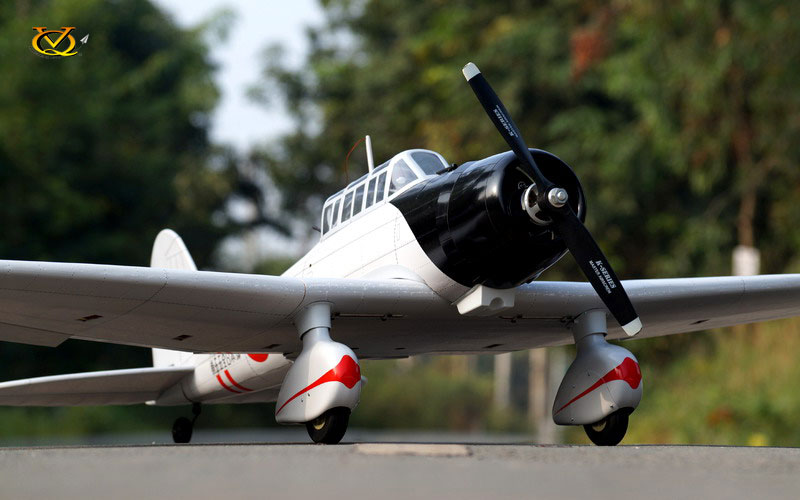

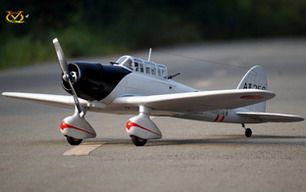

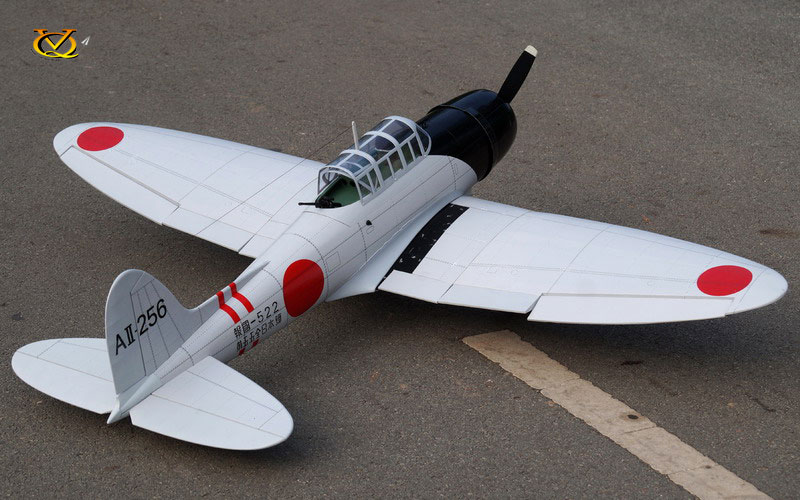

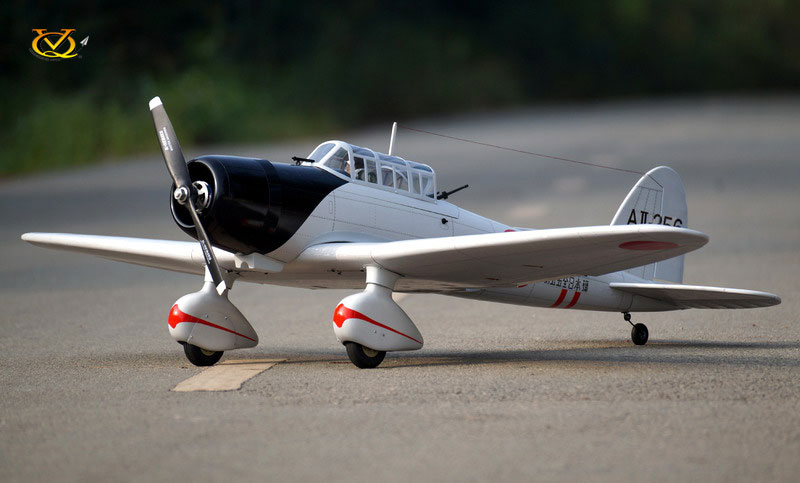

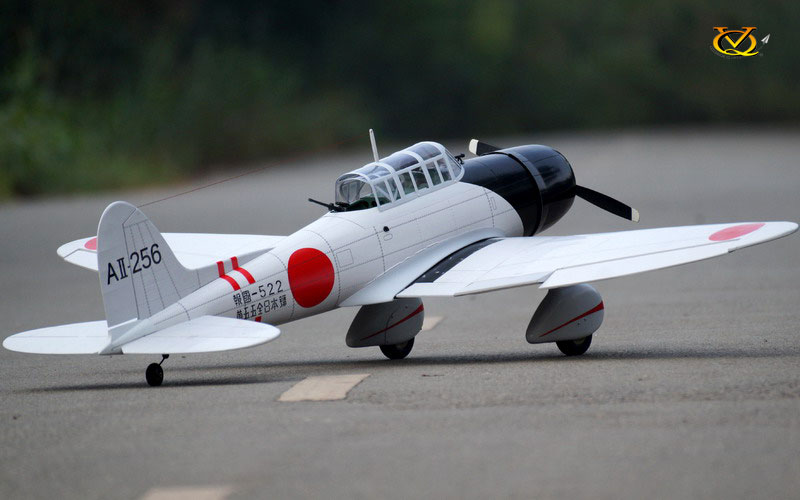

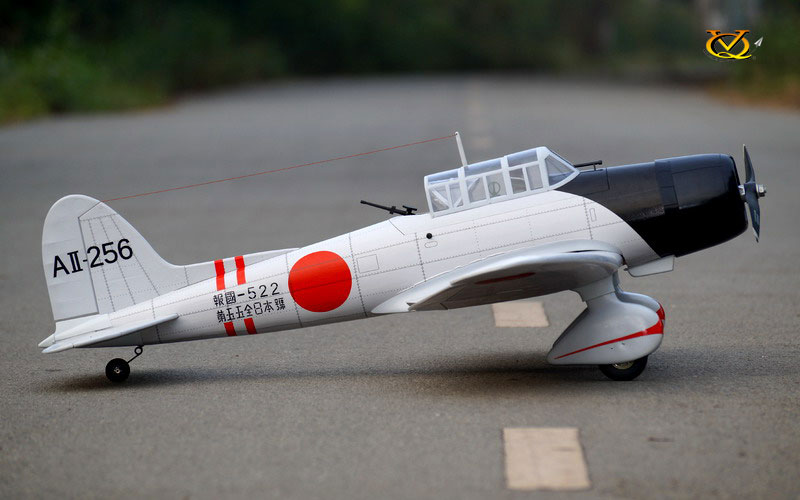

Photo gallery
